Atlas Stacking Dry Bath

Part of the Atlas HD range

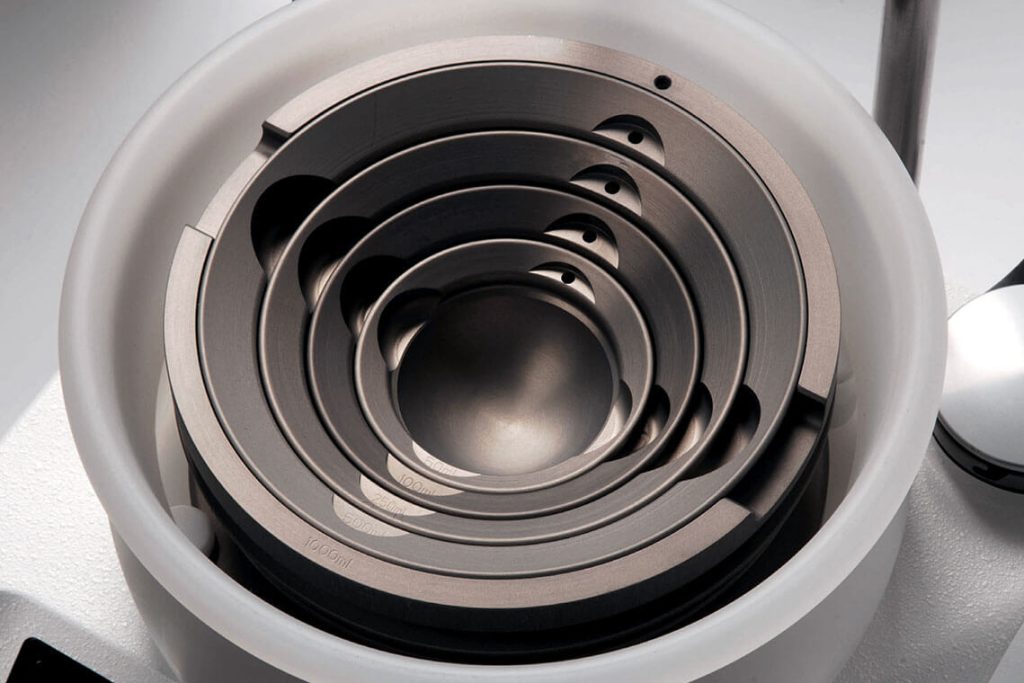

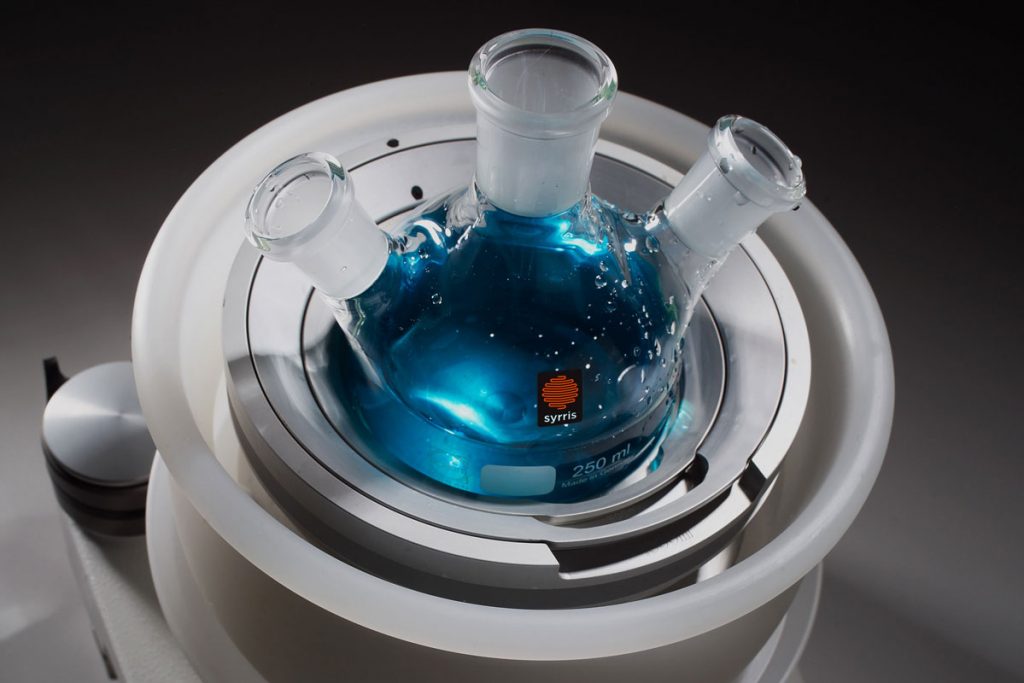

The Atlas Stacking Dry Bath is a new way of heating round bottom flasks without the issues associated with oil baths. The Stacking Dry Bath has a series of concentric inserts to hold round bottom flasks from 50 mL to 1 L.

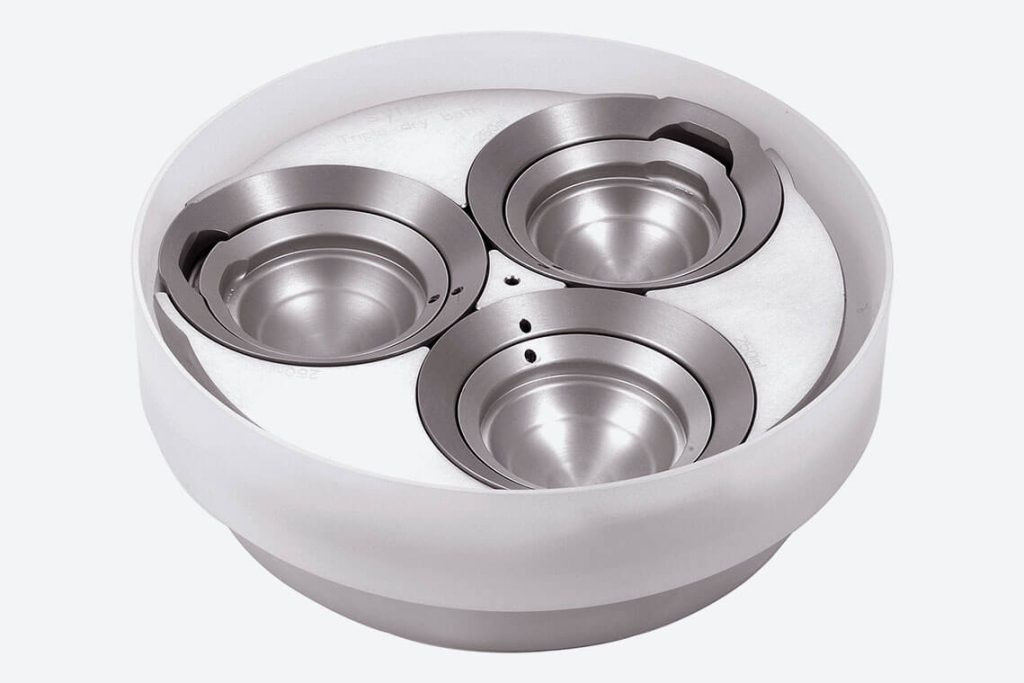

The inserts provide excellent thermal transfer to optimize heating times. The exterior of the Dry Bath is safe to touch even when the Dry Bath is hot. The Triple Dry bath takes up to 3 flasks from 50 mL to 250 mL.

  • Safe: Chemist is protected from the heat by a safety shield. In an emergency, the dry bath can be picked up and moved
  • Lighter weight: The sleek design reduces the mass of the block to be heated, improving heat-up times
  • Wide temperature range: Can safely operate with plate temperatures up to 280°C and down to -80°C
  • Fits all leading brand of hotplate: Syrris Atlas, IKA etc (fits hotplate diameter of 13.5 cm, 5 5/16″)
  • Rapid cooling: Safety shield sets up a natural convection airflow allowing the reaction to be cooled quickly for rapid workup and purification
  • Nested design: One Atlas Dry Bath can be used for 50, 100. 250, 500 and 1000 mL round bottom flasks
  • Robust: Specifically designed for use in chemical laboratories
  • Rapid heating: Deep cups maximize heated surface area to improve heat-up time and minimize the difference between the block and solution temperature
  • Novel: Unique design prevents cracking of glassware as found with other designs
  • Accurate temperature measurement: A thermowell in every cup allows the temperature probe to be in intimate contact with the reactor
  • Single reactions supported: Single Dry Bath can be used for 50, 100, 250, 500 and 1000 mL vessels
  • Triple reactions supported: Triple Dry Bath can be used for 50, 100 and 250 mL round bottom flasks

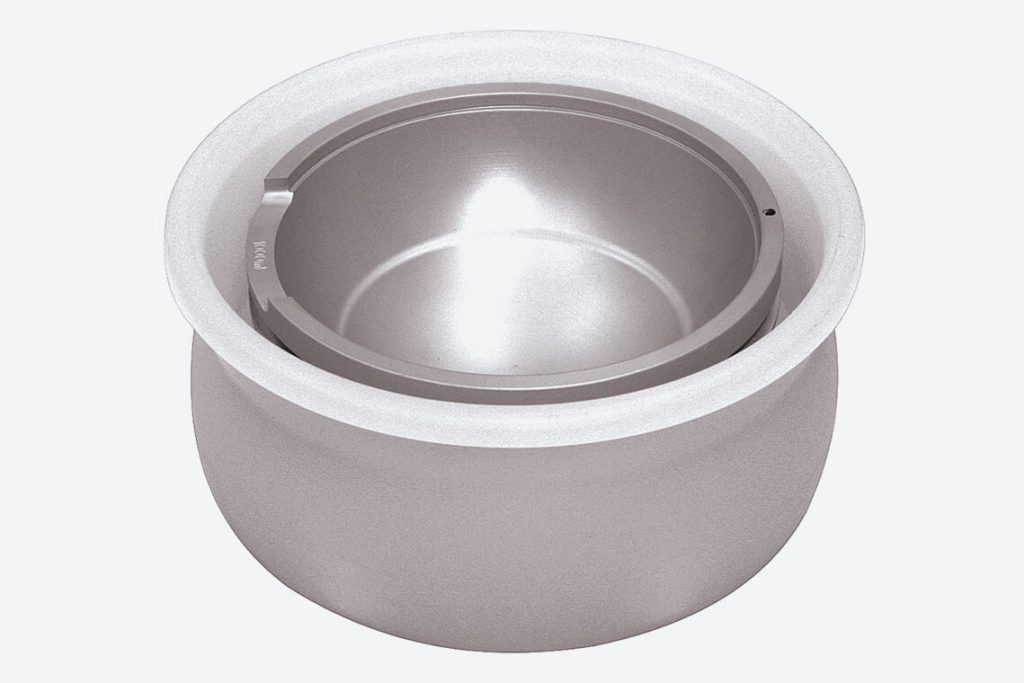

The Atlas Stacking Dry Bath Base

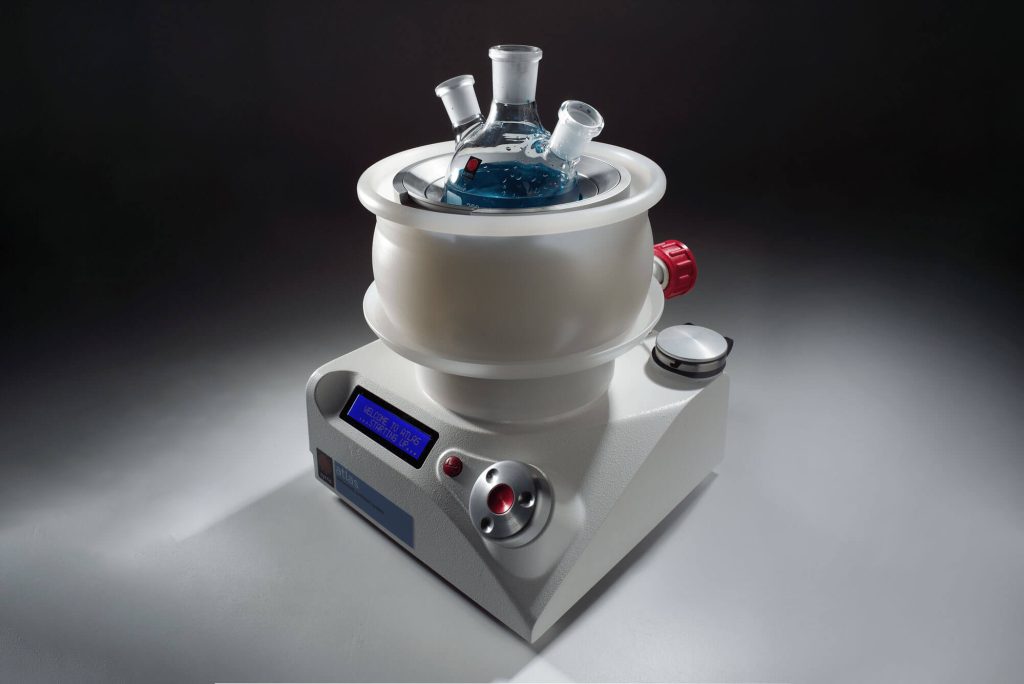

The Dry Bath Base is used to heat or cool 1 litre round bottom flasks and also accepts all the dry bath inserts for round bottom flasks and vials. The exterior of the Dry Bath is insulated for safety and the unique design creates a natural convection current to enable rapid cooling after switching off the hotplate. The Dry Bath Base fits on the Atlas Hotplate, Hot and Cold Plate and most third party stirrer hotplates (with 135mm diameter).

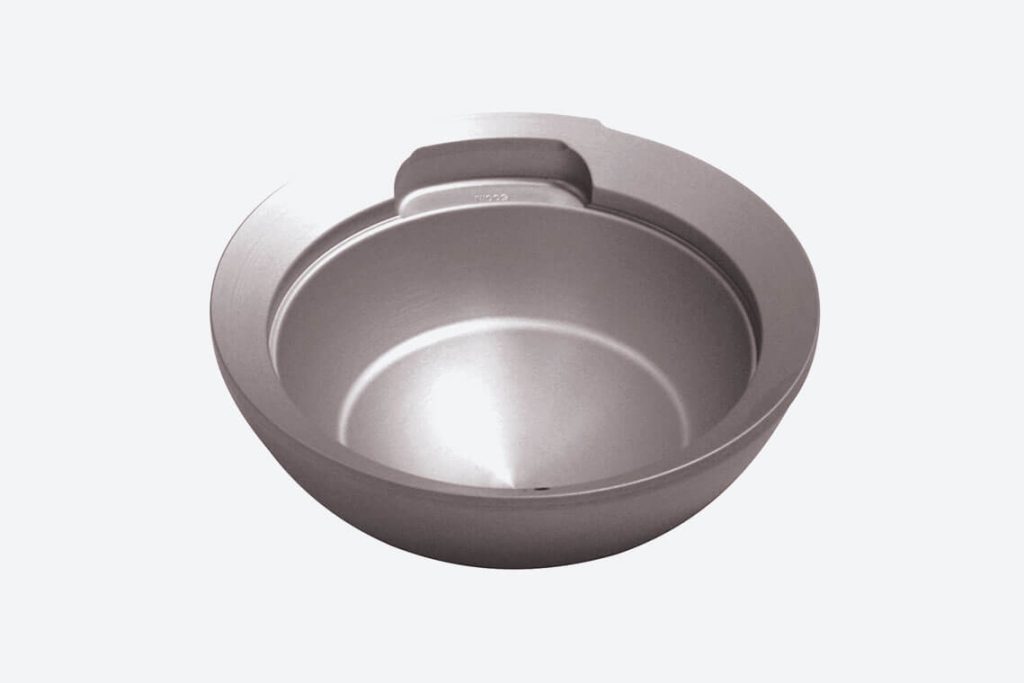

Note that to use a flask insert, all the larger flask inserts must also be present.

Atlas Stacking Dry Bath specification:

 Feature  Specification
Maximum Temperature +280°C hotplate temperature
Base Diameter To fit 135mm hotplate stirrers (150 mm version also available)
Flask Compatibility To fit 50 mL, 100 mL, 250 mL, 500 mL, and 1 L flasks (2 L option available). Standard version fits regular flasks in virtually every country of the world (covers USA, Europe, most of Asia, Latin America, etc. i.e. ISO and ASTM standards). Japanese version fits Japanese flasks (JIS standard)
