Syrris Orb Jacketed Reactor video

Orb Jacketed Reactor
Orb is a compact bench-top jacketed reactor system combining excellent value and high quality construction with unique user-friendly features and reliable performance for batch reactions. Orb allows rapid height adjustment and two clamp sizes to accommodate a wide range of vessel sizes from 100ml to 10L, which can be interchanged quickly. The system can be used over a wide range temperatures and is a true chemistry lab workhorse. A wide selection of accessories and upgrades for automation is available.

Video Transcript

Orb is a compact bench-top jacketed reactor system from Syrris, with a wide range of accessories, stirrers, stirrer motors, circulators and reactor profiles. With volumes from 100 mL to 10 L, it offers excellent value. Designed by chemists, Orb is a high quality, user-friendly, reliable solution for batch reactions, with a maximum temperature range of -90 °C to +250 °C and pressures from 50 mbar to 0.25 bar. The compact design saves space and its robust, durable construction ensures longevity and reliability. Orb has been built to the highest quality, with clever usability features at the heart of its design. Changing vessels on Orb is easy. Orb allows quick and reliable connections of the oil pipes to the jacketed reactor, without the need for tools. The stirrer motor can be easily lifted and rotated out of the way if a vessel changes. Simply open the safety lever, lift the rotator and move out of the way. It then rotates back without further alignment. The unique vessel clamp mechanism allows jacketed vessels to be added and removed without tools. The clamp can be opened by turning the clamp knob. The vessel remains in place with the clamp open, and can then be easily lifted out and replaced. Orb features two clamp sizes, which can be quickly and easily interchanged to accommodate a wide range of vessels, from 100 ml to 10 L. For further convenience; vessel height can be quickly adjusted with no tools required. Simply pull back the panel knob and lift the panel to adjust the vessel height. For more sophisticated needs, Orb can be upgraded to allow automation. Add the Orb Reactor Master to automate, display and log temperature, stirrer speed, additions, pH and more, without a PC. Or; add the PC software to convert Orb to a fully controlled laboratory reactor. Many accessories are available, including condensers, baffles, port adaptors and a powder or pressure equalizing liquid funnel. Optional rapid oil drain allows oil to be safely and cleanly drained from the jacketed reactor back into the circulator. Optional oil pipe tidy is available for additional comfort. Built on Syrris’ extensive experience, the Orb Reactor system offers true value, ease of use and flexibility. Effortless reactions with Orb. For more information about Orb and its wide range of features, contact us now at www.syrris.com

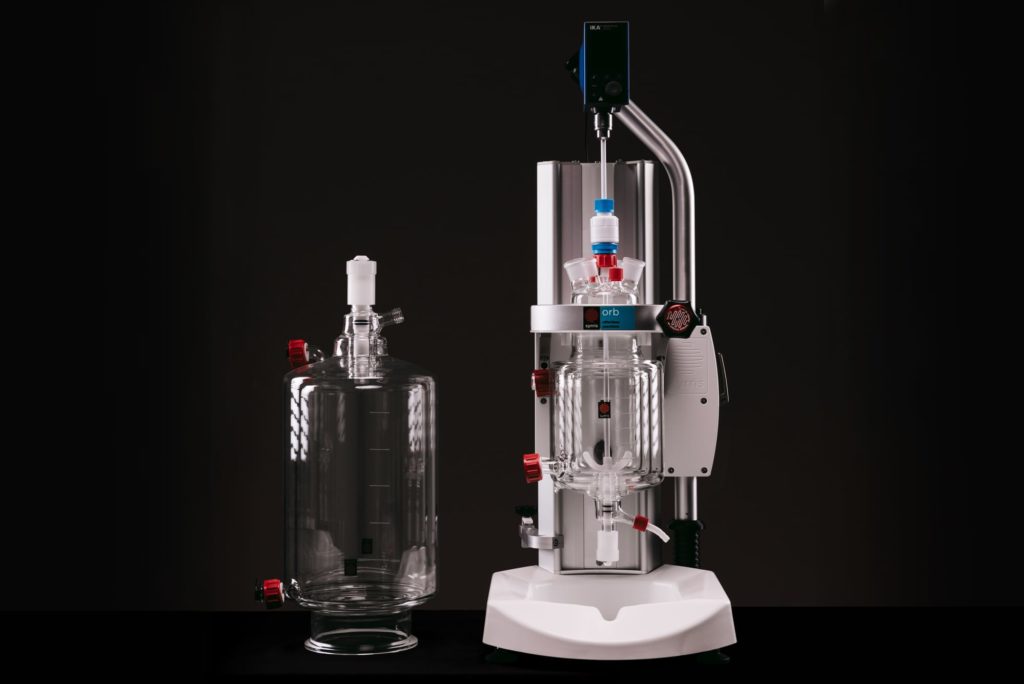

Syrris Orb Jacketed Reactor with spare vessel

Orb Jacketed Reactor

Save lab space, save money.  Orb Jacketed Reactor provides multiple reactor setups in one footprint with seamless vessel changes in minutes thanks to its quick clamp system, easy stirrer motor lift, and pre-set height adjustments.

Get in touch
