Pre-configured System

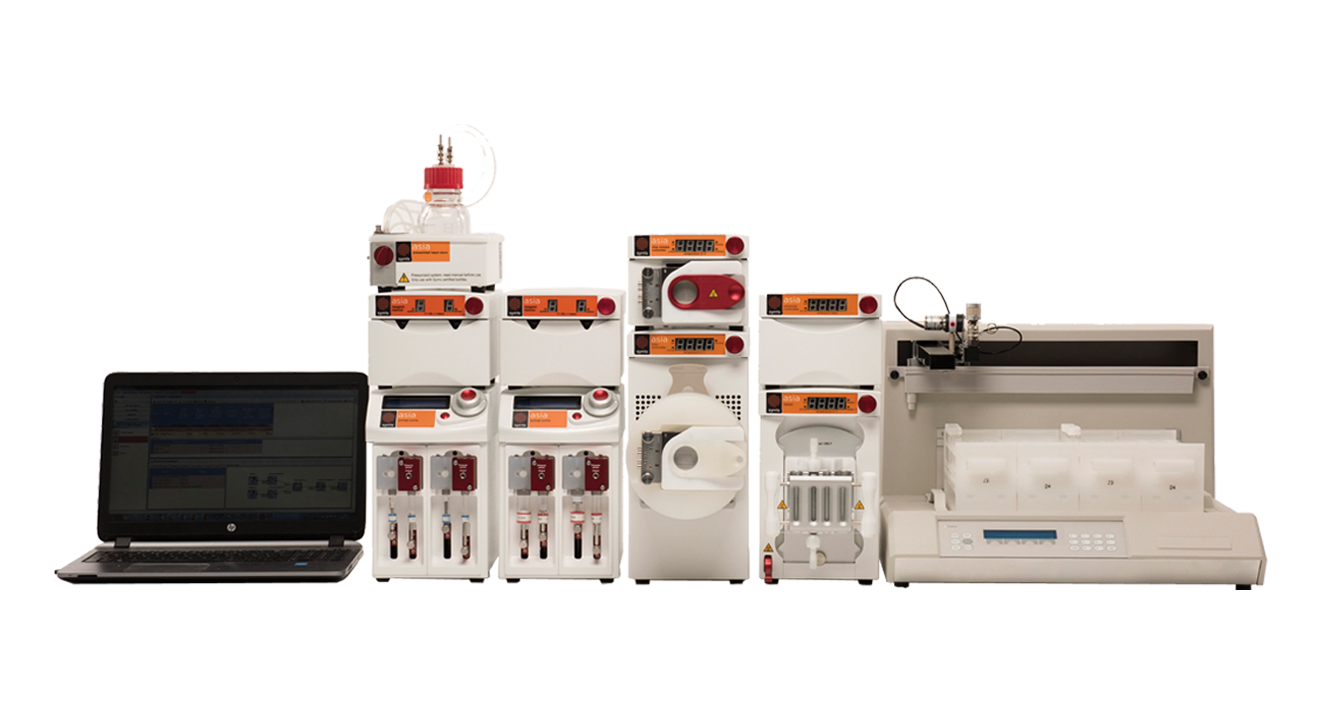

Asia Cold Flow Chemistry System
Enables safe chemical reactions under cryogenic conditions (e.g. exothermic organometallic reactions).
The Asia Cold Flow Chemistry system incorporates all the required parts for running reactions in continuous flow at temperatures down to -100°C. The Regular system uses a Tube Cooler with dry ice and acetone. The Advanced system centres on the Cryo Controller, an innovative and unique module able to cool down to 100 °C using electric power only without the need for external cooling.
The easy-to-use and affordable systems contain all essential flow system parts. All Asia systems are future-proof and can be seamlessly upgraded with additional features and modules as the user experience with flow chemistry grows and/or needs change.
All Asia systems are available as either regular or advanced configurations to suit different requirements and budgets, and all systems include the Asia Syringe Pump as a common module.
Specifications
|
Regular
|
Advanced
|
|
|---|---|---|
| Flow rate |
1 μL/min to 10 mL/min*
|
|
| Pressure |
0 to 20 bar**
|
|
| System temperature |
-68 °C*** to ambient
|
-100 °C to +250 °C |
| Pump channels |
2
|
4
|
| Chip reactors |
✘
|
✔
|
| Tube reactors |
✔
|
✔
|
| Column reactors |
✘
|
✔
|
| Product collection |
manual
|
automated
|
| Pressurized inputs |
✔
|
✔
|
| Injection valves |
2
|
4
|
| Automation |
✘
|
✔
|
*Depending on syringe size
**10 bar when using fluoropolymer tube reactors
***Depending on cooling solution
Modules
-
Pumping
-

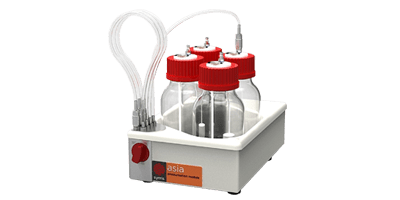

Asia Pressurized Input Store
The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x […]
View module details -

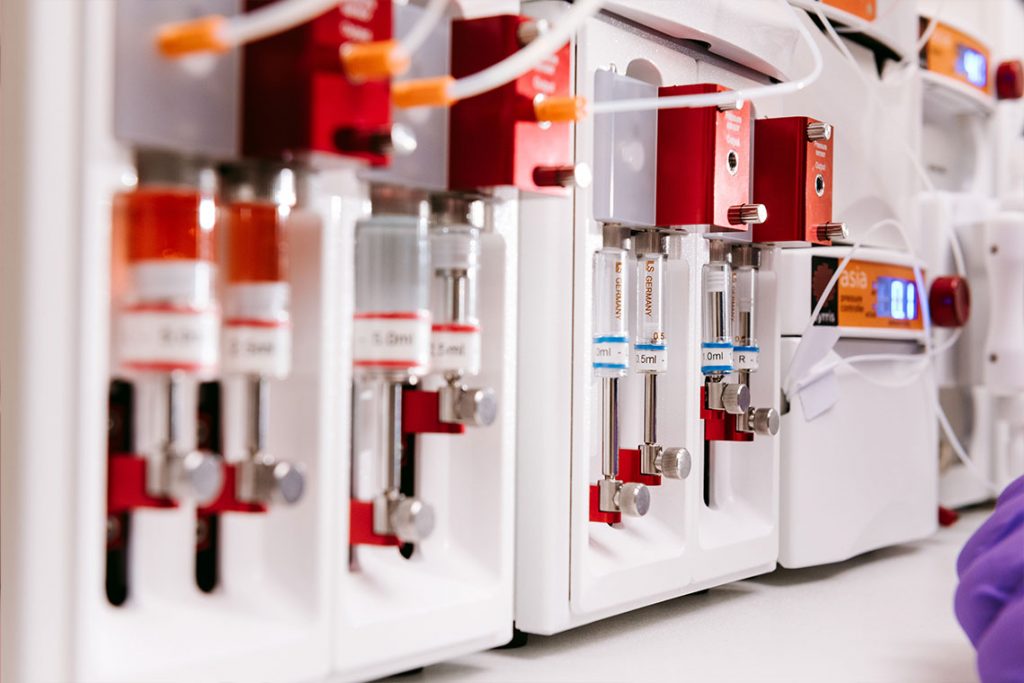

Asia Syringe Pump
Designed specifically for flow chemistry the Asia Syringe Pump provides an ultra-smooth flow rate of 1.0 μL to 10 mL/min […]
View module details
-
-
Reagent Injection
-
Asia Reagent Injector
The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, […]
View module details
-
-
Flow Reactor
-
Asia Tube Cooler
The Asia Tube Cooler enables a range of fluoropolymer and stainless steel Asia Tube Reactors to be cooled to as […]
View module details -
Asia Chip Climate Controller
The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC […]
View module details -
Asia Heater
The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in […]
View module details -

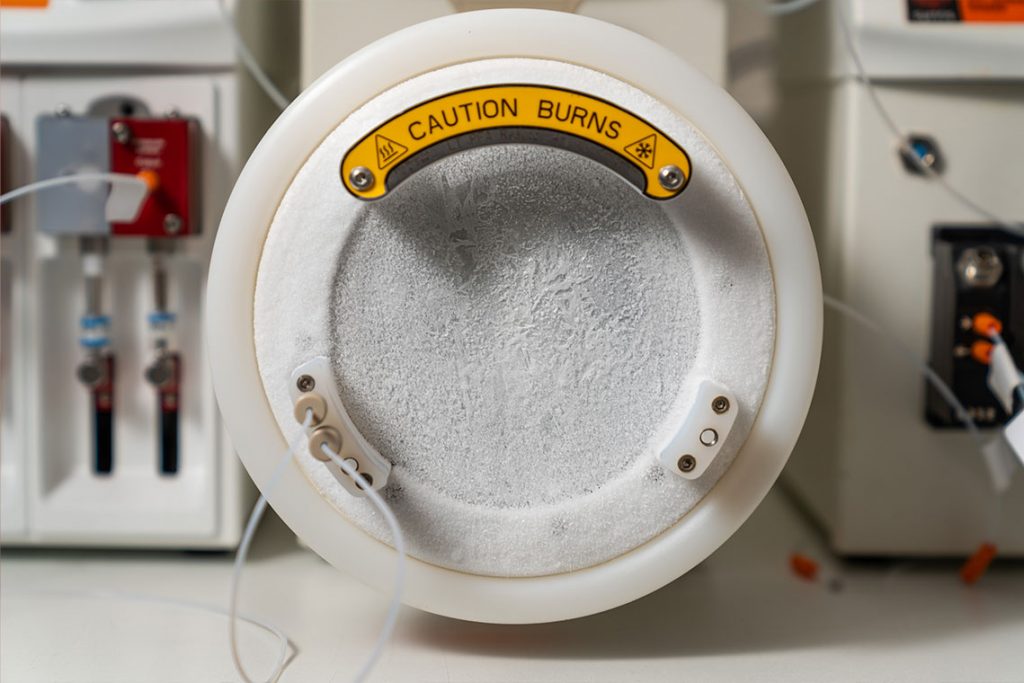

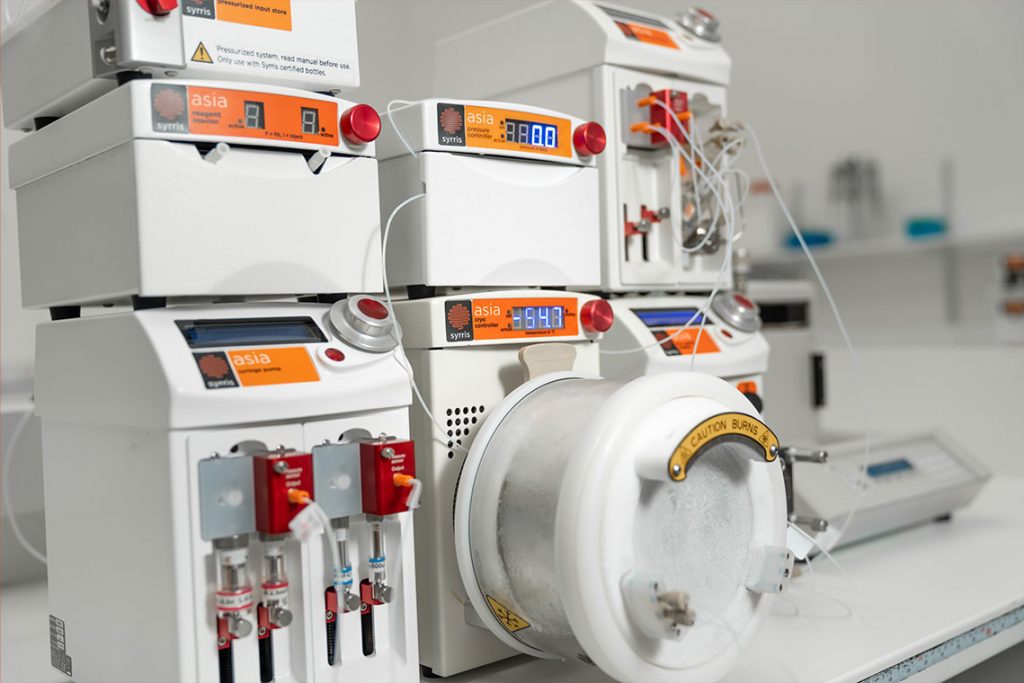

Asia Cryo Controller
This compact module requires only mains power to rapidly cool a selection of fluoropolymer or stainless steel tube reactors to […]
View module details
-
-
Post Reaction Modules
-
Asia Pressure Controller
The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 […]
View module details
-
-
Automation
-
Asia Automator
The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320, […]
View module details -

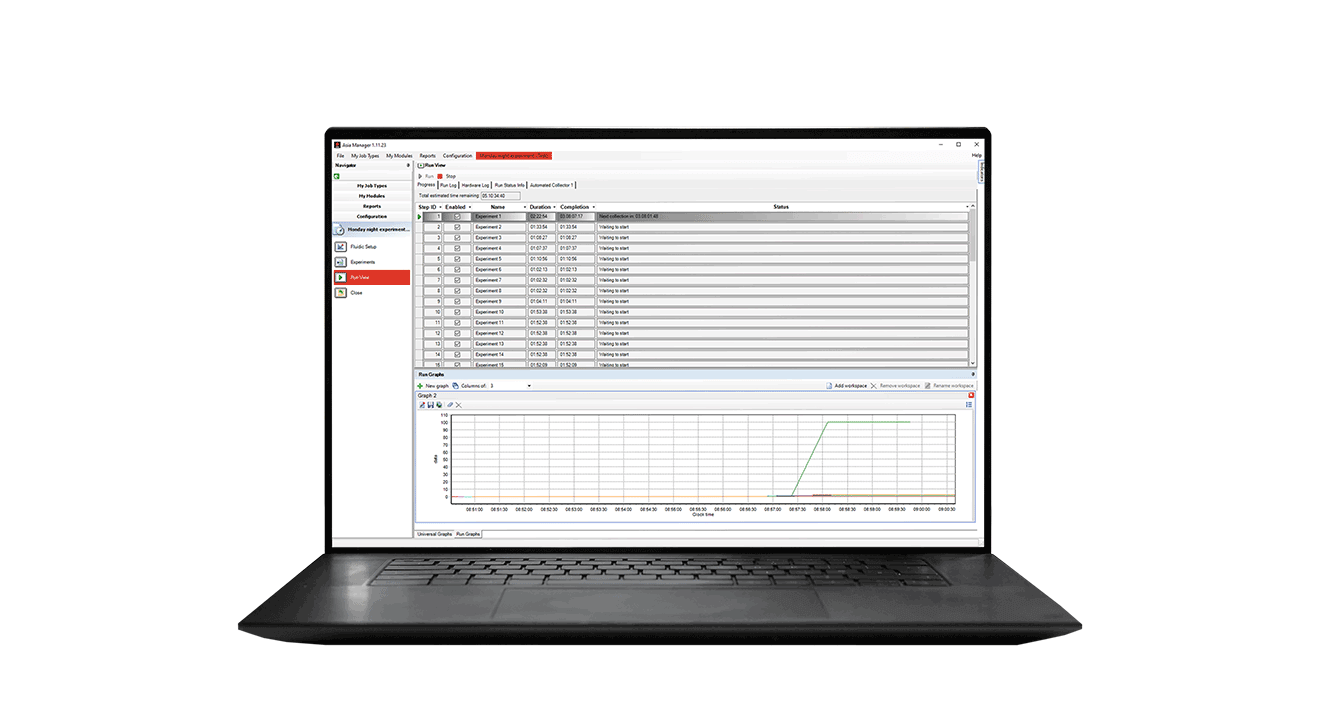

Asia Manager PC Software
Asia Manager Software is an easy-to-use and intuitive PC software for total walk-away control of your Asia System. The software […]
View module details
-
-
Optional modules
-
Asia Syringe Pump
Designed specifically for flow chemistry the Asia Syringe Pump provides an ultra-smooth flow rate of 1.0 μL to 10 mL/min […]
View module details -
Asia Reagent Injector
The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, […]
View module details -
Asia Chip Climate Controller
The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC […]
View module details -
Asia Heater
The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in […]
View module details -
Asia Cryo Controller
This compact module requires only mains power to rapidly cool a selection of fluoropolymer or stainless steel tube reactors to […]
View module details -
Asia Pressure Controller
The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 […]
View module details -
Asia Automator
The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320, […]
View module details -
Asia Manager PC Software
Asia Manager Software is an easy-to-use and intuitive PC software for total walk-away control of your Asia System. The software […]
View module details
-
