Asia Discovery Flow Chemistry System

For limited quantities of starting material or expensive reagents, Asia Discovery Flow Chemistry Systems offer setups capable of running flow experiments using very small amounts of reagents and is one of the many setups available with Asia.

At a glance

With the Asia Discovery Flow Chemistry system, users can design a list of experiments, each requiring just hundreds of microliters of reagents, and run them in sequence.  Using a range of modules, the system will automatically inject the required amount for each reaction and collect the resulting solution in a small vial

The easy-to-use and affordable systems contain all essential flow system parts.  All Asia systems are future-proof and can be seamlessly upgraded with additional features and modules as the user experience with flow chemistry grows and/or needs change.

All Asia systems are available as either regular or advanced configurations to suit different requirements and budgets, and all systems include the Asia Syringe Pump as a common module.

Regular
Advanced
Flow rate
1 μL/min to 10 mL/min*
Pressure
0 to 20 bar
0 to 20 bar**
System temperature
-15 °C to +150 °C
-100 °C to +250 °C
Pump channels
2
4
Chip reactors
Tube reactors
Column reactors
Product collection
automated
automated
Pressurized inputs
Injection valves
2
4
Auto injection valves
2
Automation

*Depending on syringe size

**10 bar when using fluoropolymer tube reactors

Specifications

Flow Rate

1 μL/min to 10 mL/min (depending on syringe size)

Pressure Range

0 to 20 bar (10 bar when using fluoropolymer tube reactors)

Temperature Range

Advanced system: -100 °C to +250 °C, Regular system: -15 °C to +150 °C


System configurations

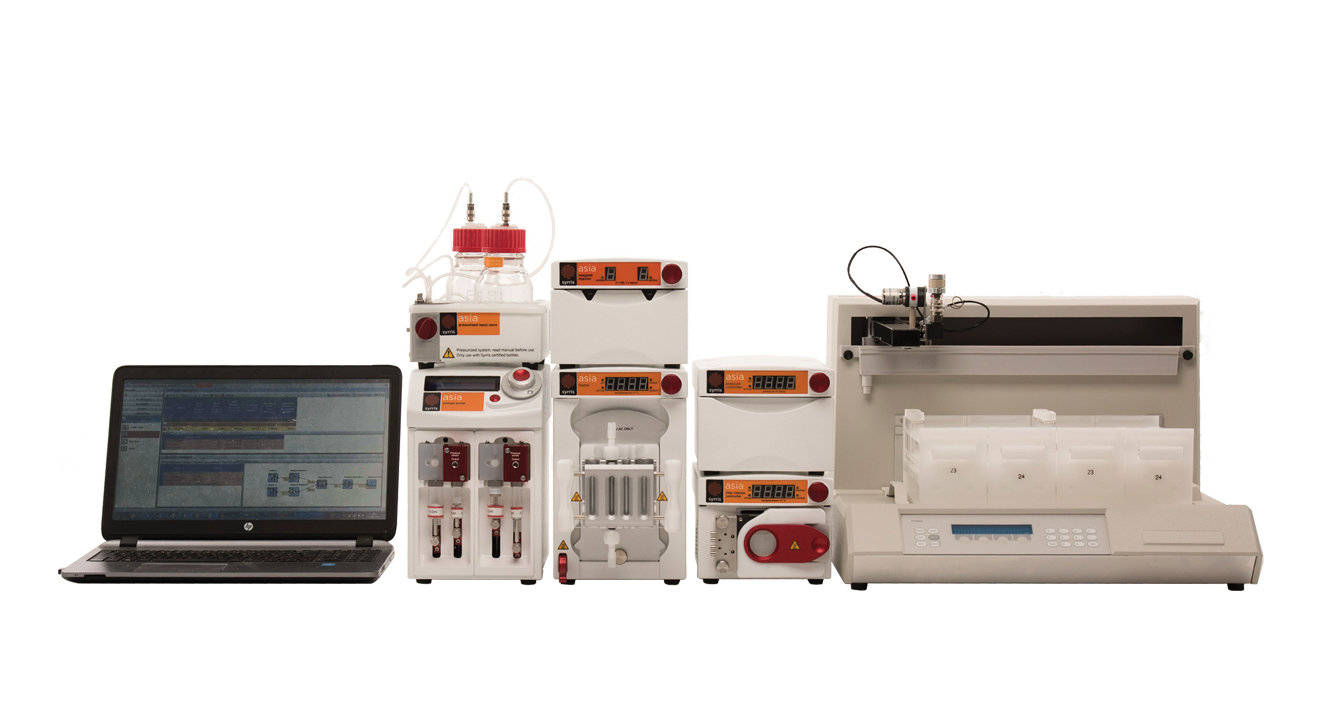

Syrris Asia Discovery Flow Chemistry System

Discovery System

For limited quantities of starting material or expensive reagents, Asia Discovery Chemistry Systems offer setups capable of running flow experiments using very small amounts of reagents. Users can design a list of experiments, each requiring just hundreds of microliters of reagents, and run them in sequence.

Included modules

  • Asia Pressurized Input Store

    The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…

  • Asia Syringe Pump

    Designed specifically for flow chemistry, the ultra smooth Asia Pump is extremely chemically resistant and is rated to 20 bar (300psi).  This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…

  • Asia Reagent Injector

    The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5ml by default, 0.1ml, 1ml and 10ml also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist of full or partial…

  • Asia Chip Climate Controller

    The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC without the need for an external circulator or cold water supply. The Peltier based system ensures quick and accurate temperature control within a very compact…

  • Asia Pressure Controller

    The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…

Optional modules

  • Asia Syringe Pump

    Designed specifically for flow chemistry, the ultra smooth Asia Pump is extremely chemically resistant and is rated to 20 bar (300psi).  This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…

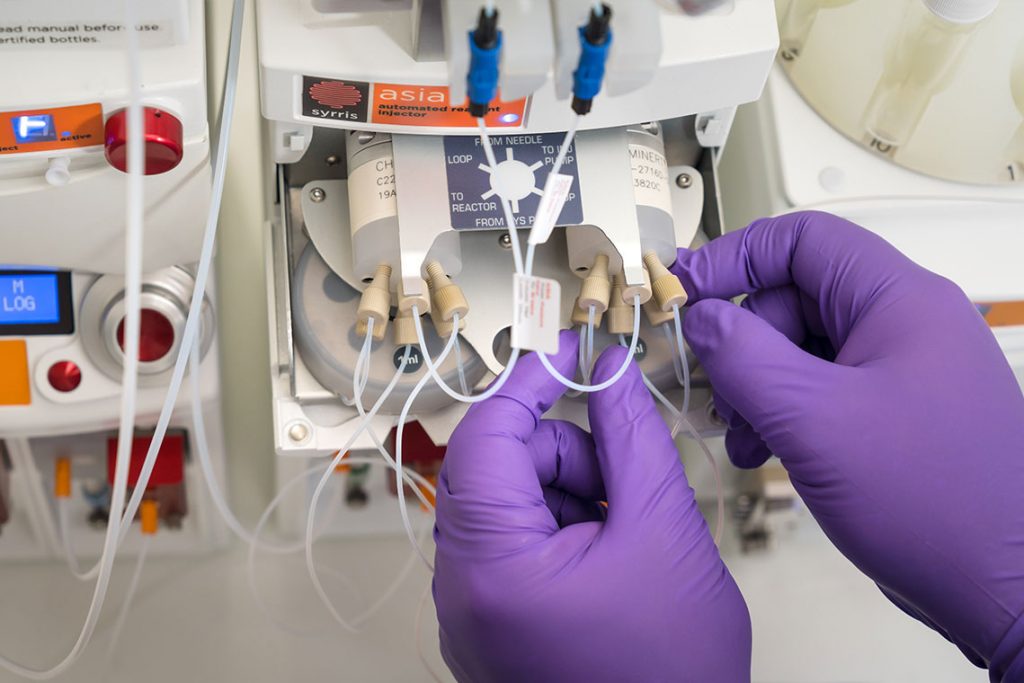

  • Asia Automated Reagent Injector

    Asia Automated Reagent Injector allows automated aspiration and loading of multiple reagents into injection loops under inert conditions; and subsequent pressurization prior to injection. Removable racks for a range of vial sizes and pre-pressurization to avoid pressure drops within the reactions (up to 20 bar)…

  • Asia Heater

    The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…

  • Asia Cryo Controller

    The Asia Cryo Controller is a high performance, ultra cold cooling module for flow chemistry reactions. This compact module requires only mains power to rapidly cool a selection of fluoropolymer or stainless steel tube reactors to -70°C or a range of glass or quartz microreactors…

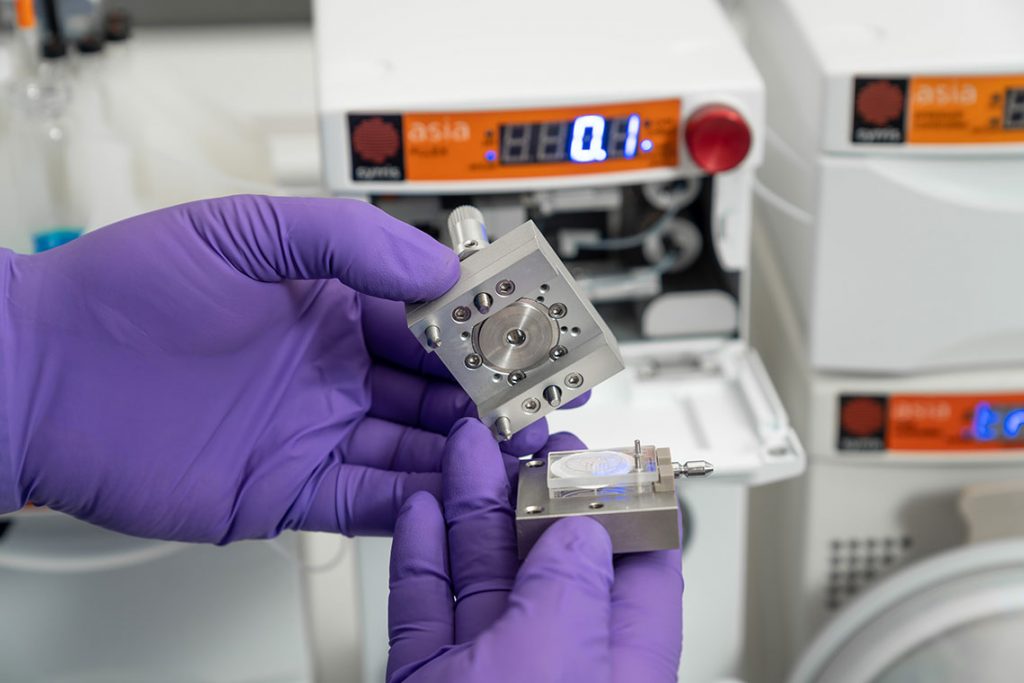

  • Asia FLLEX (Flow Liquid Liquid EXtraction)

    The Asia FLLEX (Flow Liquid Liquid EXtraction) module is the flow chemistry equivalent of a separatory funnel. Operating continuously, this aqueous workup or extraction module initially mixes the organic product stream with an aqueous phase, then allows time for diffusion to occur before finally splitting…

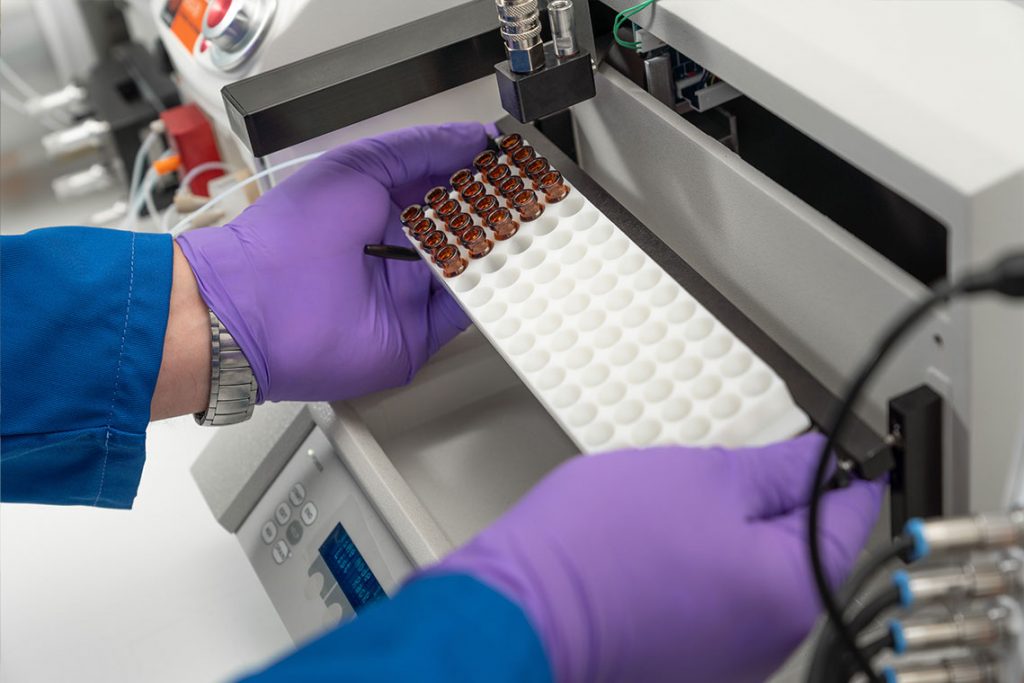

  • Asia Automated Collector

    The Asia Automated Collectors (Mini and Regular) enable fully automated collection of multiple reactions. The Asia Automated Collectors allow the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. The 3-way valve automatically…

  • Asia Automator

    The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320 or 330 systems). Controlling a system from a PC: By connecting the Asia Automator and the Asia pump to a PC via USB, it is…

  • Asia Manager PC Software

    Asia Manager Software is an easy-to-use and intuitive PC software for total "walk-away" control of your Asia System. The software allows "chemist familiar" terms to be entered, e.g. required reaction time and temperature and reagent quantities, concentrations and equivalents to be used. The software then…

Syrris Asia Flow Chemistry - Configure your own system

Configure your own Asia system

Due its modular nature, the Asia system can be tailored to suit your chemistry. All modules can be interchanged so that you can choose your own functionality. Speak to one of the Syrris chemists to assist you in your choice.

Included modules

  • Asia Pressurized Input Store

    The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…

  • Asia Syringe Pump

    Designed specifically for flow chemistry, the ultra smooth Asia Pump is extremely chemically resistant and is rated to 20 bar (300psi).  This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…

  • Asia Reagent Injector

    The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5ml by default, 0.1ml, 1ml and 10ml also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist of full or partial…

  • Asia Automated Reagent Injector

    Asia Automated Reagent Injector allows automated aspiration and loading of multiple reagents into injection loops under inert conditions; and subsequent pressurization prior to injection. Removable racks for a range of vial sizes and pre-pressurization to avoid pressure drops within the reactions (up to 20 bar)…

  • Asia Chip Climate Controller

    The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC without the need for an external circulator or cold water supply. The Peltier based system ensures quick and accurate temperature control within a very compact…

  • Asia Heater

    The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…

  • Asia Cryo Controller

    The Asia Cryo Controller is a high performance, ultra cold cooling module for flow chemistry reactions. This compact module requires only mains power to rapidly cool a selection of fluoropolymer or stainless steel tube reactors to -70°C or a range of glass or quartz microreactors…

  • Asia Tube Cooler

    The Asia Tube Cooler enables a range of fluoropolymer and stainless steel Asia Tube Reactors to be cooled to as low as -68°C. The module can either be used in standalone mode or can plug into an Asia Heater to have the reaction temperature monitored…

  • Asia FLUX

    The Asia Flux is a flexible, tunable, continuous flow electrochemistry module. This compact module enables unique chemical transformations with ultimate ease of use. The module consists of a power supply and electrochemical flow cell. The cell, with minimal electrode gap, enables a wide range of…

  • Asia Pressure Controller

    The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…

  • Asia FLLEX (Flow Liquid Liquid EXtraction)

    The Asia FLLEX (Flow Liquid Liquid EXtraction) module is the flow chemistry equivalent of a separatory funnel. Operating continuously, this aqueous workup or extraction module initially mixes the organic product stream with an aqueous phase, then allows time for diffusion to occur before finally splitting…

  • Asia Sampler and Dilutor

    The Asia Sampler and Dilutor enables on-line reaction analysis by offering automated sample extraction, dilution and transfer to virtually any LCMS, GCMS, UPLC, etc. Without stopping the experiment, the Sampler and Dilutor automatically takes a 5µl sample (or multiple samples) from the flowing stream of…

  • Asia Product Collector

    The Asia Product Collector allows convenient collection of samples into a range of vessel sizes. The automated 3-way valve allows the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. When controlled by…

  • Asia Automated Collector

    The Asia Automated Collectors (Mini and Regular) enable fully automated collection of multiple reactions. The Asia Automated Collectors allow the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. The 3-way valve automatically…

  • Asia Automator

    The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320 or 330 systems). Controlling a system from a PC: By connecting the Asia Automator and the Asia pump to a PC via USB, it is…

  • Asia Manager PC Software

    Asia Manager Software is an easy-to-use and intuitive PC software for total "walk-away" control of your Asia System. The software allows "chemist familiar" terms to be entered, e.g. required reaction time and temperature and reagent quantities, concentrations and equivalents to be used. The software then…

Optional modules

Asia Starter Flow Chemistry System by Syrris

Asia Starter Systems

The easy-to-use and affordable systems contain all essential flow system parts: an Asia Syringe Pump, an Asia Chip Climate Controller, a glass microreactor, and an Asia Pressure Controller.  The systems are future-proof and can be seamlessly upgraded with additional features and modules as the user experience with flow chemistry grows.

Included modules

  • Asia Syringe Pump

    Designed specifically for flow chemistry, the ultra smooth Asia Pump is extremely chemically resistant and is rated to 20 bar (300psi).  This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…

  • Asia Chip Climate Controller

    The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC without the need for an external circulator or cold water supply. The Peltier based system ensures quick and accurate temperature control within a very compact…

  • Asia Pressure Controller

    The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…

Optional modules

  • Asia Pressurized Input Store

    The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…

  • Asia Reagent Injector

    The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5ml by default, 0.1ml, 1ml and 10ml also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist of full or partial…

  • Asia Heater

    The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…

  • Asia Product Collector

    The Asia Product Collector allows convenient collection of samples into a range of vessel sizes. The automated 3-way valve allows the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. When controlled by…

Syrris Asia Electrochemistry Flow Chemistry System

Electrochemistry System

Electrochemical activation of chemical reagents enables selectivity and transformations impossible by other techniques. The Asia Electrochemistry Systems give easy access to electrochemical reactions in continuous flow.

Included modules

  • Asia Pressurized Input Store

    The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…

  • Asia Syringe Pump

    Designed specifically for flow chemistry, the ultra smooth Asia Pump is extremely chemically resistant and is rated to 20 bar (300psi).  This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…

  • Asia Reagent Injector

    The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5ml by default, 0.1ml, 1ml and 10ml also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist of full or partial…

  • Asia Chip Climate Controller

    The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC without the need for an external circulator or cold water supply. The Peltier based system ensures quick and accurate temperature control within a very compact…

  • Asia FLUX

    The Asia Flux is a flexible, tunable, continuous flow electrochemistry module. This compact module enables unique chemical transformations with ultimate ease of use. The module consists of a power supply and electrochemical flow cell. The cell, with minimal electrode gap, enables a wide range of…

  • Asia Pressure Controller

    The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…

  • Asia Product Collector

    The Asia Product Collector allows convenient collection of samples into a range of vessel sizes. The automated 3-way valve allows the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. When controlled by…

Optional modules

  • Asia Heater

    The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…

  • Asia Syringe Pump

    Designed specifically for flow chemistry, the ultra smooth Asia Pump is extremely chemically resistant and is rated to 20 bar (300psi).  This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…

  • Asia Reagent Injector

    The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5ml by default, 0.1ml, 1ml and 10ml also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist of full or partial…

  • Asia Automated Collector

    The Asia Automated Collectors (Mini and Regular) enable fully automated collection of multiple reactions. The Asia Automated Collectors allow the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. The 3-way valve automatically…

  • Asia Automator

    The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320 or 330 systems). Controlling a system from a PC: By connecting the Asia Automator and the Asia pump to a PC via USB, it is…

  • Asia Manager PC Software

    Asia Manager Software is an easy-to-use and intuitive PC software for total "walk-away" control of your Asia System. The software allows "chemist familiar" terms to be entered, e.g. required reaction time and temperature and reagent quantities, concentrations and equivalents to be used. The software then…

Syrris Asia Cold Flow Chemistry System

Cold System

The Asia Cold Systems have been specially defined to enable safe chemical reactions under cryogenic conditions (e.g. exothermic organometallic reactions). The systems incorporate all the required parts for running reactions in continuous flow at temperatures down to -100°C.

Included modules

  • Asia Pressurized Input Store

    The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…

  • Asia Syringe Pump

    Designed specifically for flow chemistry, the ultra smooth Asia Pump is extremely chemically resistant and is rated to 20 bar (300psi).  This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…

  • Asia Reagent Injector

    The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5ml by default, 0.1ml, 1ml and 10ml also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist of full or partial…

  • Asia Tube Cooler

    The Asia Tube Cooler enables a range of fluoropolymer and stainless steel Asia Tube Reactors to be cooled to as low as -68°C. The module can either be used in standalone mode or can plug into an Asia Heater to have the reaction temperature monitored…

  • Asia Pressure Controller

    The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…

Optional modules

  • Asia Syringe Pump

    Designed specifically for flow chemistry, the ultra smooth Asia Pump is extremely chemically resistant and is rated to 20 bar (300psi).  This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…

  • Asia Reagent Injector

    The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5ml by default, 0.1ml, 1ml and 10ml also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist of full or partial…

  • Asia Chip Climate Controller

    The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC without the need for an external circulator or cold water supply. The Peltier based system ensures quick and accurate temperature control within a very compact…

  • Asia Heater

    The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…

  • Asia Cryo Controller

    The Asia Cryo Controller is a high performance, ultra cold cooling module for flow chemistry reactions. This compact module requires only mains power to rapidly cool a selection of fluoropolymer or stainless steel tube reactors to -70°C or a range of glass or quartz microreactors…

  • Asia Pressure Controller

    The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…

  • Asia Automator

    The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320 or 330 systems). Controlling a system from a PC: By connecting the Asia Automator and the Asia pump to a PC via USB, it is…

  • Asia Manager PC Software

    Asia Manager Software is an easy-to-use and intuitive PC software for total "walk-away" control of your Asia System. The software allows "chemist familiar" terms to be entered, e.g. required reaction time and temperature and reagent quantities, concentrations and equivalents to be used. The software then…

Syrris Asia Process Optimization Flow Chemistry System

Process Optimization System

Ideal for converting a batch reaction to a flow process and varying reaction parameters to optimize the reaction. Easy setup of tens of automated reactions using the intuitive Asia Manager Software. The systems will calculate the required flow rates and reagent amounts and fully automate each reaction.

Included modules

  • Asia Pressurized Input Store

    The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…

  • Asia Syringe Pump

    Designed specifically for flow chemistry, the ultra smooth Asia Pump is extremely chemically resistant and is rated to 20 bar (300psi).  This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…

  • Asia Reagent Injector

    The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5ml by default, 0.1ml, 1ml and 10ml also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist of full or partial…

  • Asia Chip Climate Controller

    The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC without the need for an external circulator or cold water supply. The Peltier based system ensures quick and accurate temperature control within a very compact…

  • Asia Heater

    The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…

  • Asia Pressure Controller

    The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…

  • Asia Automated Collector

    The Asia Automated Collectors (Mini and Regular) enable fully automated collection of multiple reactions. The Asia Automated Collectors allow the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. The 3-way valve automatically…

  • Asia Automator

    The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320 or 330 systems). Controlling a system from a PC: By connecting the Asia Automator and the Asia pump to a PC via USB, it is…

  • Asia Manager PC Software

    Asia Manager Software is an easy-to-use and intuitive PC software for total "walk-away" control of your Asia System. The software allows "chemist familiar" terms to be entered, e.g. required reaction time and temperature and reagent quantities, concentrations and equivalents to be used. The software then…

Optional modules

  • Asia Syringe Pump

    Designed specifically for flow chemistry, the ultra smooth Asia Pump is extremely chemically resistant and is rated to 20 bar (300psi).  This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…

  • Asia Automated Reagent Injector

    Asia Automated Reagent Injector allows automated aspiration and loading of multiple reagents into injection loops under inert conditions; and subsequent pressurization prior to injection. Removable racks for a range of vial sizes and pre-pressurization to avoid pressure drops within the reactions (up to 20 bar)…

  • Asia Chip Climate Controller

    The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC without the need for an external circulator or cold water supply. The Peltier based system ensures quick and accurate temperature control within a very compact…

  • Asia FLLEX (Flow Liquid Liquid EXtraction)

    The Asia FLLEX (Flow Liquid Liquid EXtraction) module is the flow chemistry equivalent of a separatory funnel. Operating continuously, this aqueous workup or extraction module initially mixes the organic product stream with an aqueous phase, then allows time for diffusion to occur before finally splitting…

  • Asia Sampler and Dilutor

    The Asia Sampler and Dilutor enables on-line reaction analysis by offering automated sample extraction, dilution and transfer to virtually any LCMS, GCMS, UPLC, etc. Without stopping the experiment, the Sampler and Dilutor automatically takes a 5µl sample (or multiple samples) from the flowing stream of…

Syrris Asia Nanoparticle Flow Chemistry System

Nanoparticle System

Flow chemistry offers exceptional advantages for nanoparticle synthesis which result in narrow particle size distribution and control over shape and architecture. The systems offer fast and reproducible mixing, excellent heat transfer and accurate temperature control.

Included modules

  • Asia Pressurized Input Store

    The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…

  • Asia Syringe Pump

    Designed specifically for flow chemistry, the ultra smooth Asia Pump is extremely chemically resistant and is rated to 20 bar (300psi).  This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…

  • Asia Heater

    The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…

  • Asia Pressure Controller

    The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…

  • Asia Product Collector

    The Asia Product Collector allows convenient collection of samples into a range of vessel sizes. The automated 3-way valve allows the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. When controlled by…

Optional modules

  • Asia Syringe Pump

    Designed specifically for flow chemistry, the ultra smooth Asia Pump is extremely chemically resistant and is rated to 20 bar (300psi).  This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…

  • Asia Reagent Injector

    The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5ml by default, 0.1ml, 1ml and 10ml also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist of full or partial…

  • Asia Heater

    The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…

  • Asia Automated Collector

    The Asia Automated Collectors (Mini and Regular) enable fully automated collection of multiple reactions. The Asia Automated Collectors allow the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. The 3-way valve automatically…

  • Asia Automator

    The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320 or 330 systems). Controlling a system from a PC: By connecting the Asia Automator and the Asia pump to a PC via USB, it is…

  • Asia Manager PC Software

    Asia Manager Software is an easy-to-use and intuitive PC software for total "walk-away" control of your Asia System. The software allows "chemist familiar" terms to be entered, e.g. required reaction time and temperature and reagent quantities, concentrations and equivalents to be used. The software then…

Syrris Asia Scale Up Flow Chemistry system

Scale-up System

Flow chemistry offers an easy way for scaling up reactions. Flow reaction parameters can be optimized using a small microreactor on few milligrams before moving onto a large tube reactor system for synthesizing multi-gram quantities of products.

Included modules

  • Asia Pressurized Input Store

    The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…

  • Asia Syringe Pump

    Designed specifically for flow chemistry, the ultra smooth Asia Pump is extremely chemically resistant and is rated to 20 bar (300psi).  This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…

  • Asia Heater

    The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…

  • Asia Tube Cooler

    The Asia Tube Cooler enables a range of fluoropolymer and stainless steel Asia Tube Reactors to be cooled to as low as -68°C. The module can either be used in standalone mode or can plug into an Asia Heater to have the reaction temperature monitored…

  • Asia Pressure Controller

    The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…

Optional modules

  • Asia Syringe Pump

    Designed specifically for flow chemistry, the ultra smooth Asia Pump is extremely chemically resistant and is rated to 20 bar (300psi).  This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…

  • Asia Heater

    The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…

  • Asia Cryo Controller

    The Asia Cryo Controller is a high performance, ultra cold cooling module for flow chemistry reactions. This compact module requires only mains power to rapidly cool a selection of fluoropolymer or stainless steel tube reactors to -70°C or a range of glass or quartz microreactors…

  • Asia FLLEX (Flow Liquid Liquid EXtraction)

    The Asia FLLEX (Flow Liquid Liquid EXtraction) module is the flow chemistry equivalent of a separatory funnel. Operating continuously, this aqueous workup or extraction module initially mixes the organic product stream with an aqueous phase, then allows time for diffusion to occur before finally splitting…

  • Asia Sampler and Dilutor

    The Asia Sampler and Dilutor enables on-line reaction analysis by offering automated sample extraction, dilution and transfer to virtually any LCMS, GCMS, UPLC, etc. Without stopping the experiment, the Sampler and Dilutor automatically takes a 5µl sample (or multiple samples) from the flowing stream of…

  • Asia Automator

    The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320 or 330 systems). Controlling a system from a PC: By connecting the Asia Automator and the Asia pump to a PC via USB, it is…

  • Asia Manager PC Software

    Asia Manager Software is an easy-to-use and intuitive PC software for total "walk-away" control of your Asia System. The software allows "chemist familiar" terms to be entered, e.g. required reaction time and temperature and reagent quantities, concentrations and equivalents to be used. The software then…

Syrris Asia Premium Flow Chemistry System

Premium System

Ideal for chemists who are interested in the utmost functionality and access to the widest range of chemical space. The Asia Premium Systems offer a full range of Asia modules and enable standard flow chemistry operations (reaction optimization, scale-up, etc.) as well as advanced use (electrochemistry, multi-step reactions, cryogenic reactions, etc.).

Included modules

  • Asia Pressurized Input Store

    The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…

  • Asia Syringe Pump

    Designed specifically for flow chemistry, the ultra smooth Asia Pump is extremely chemically resistant and is rated to 20 bar (300psi).  This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…

  • Asia Reagent Injector

    The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5ml by default, 0.1ml, 1ml and 10ml also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist of full or partial…

  • Asia Chip Climate Controller

    The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC without the need for an external circulator or cold water supply. The Peltier based system ensures quick and accurate temperature control within a very compact…

  • Asia Heater

    The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…

  • Asia Cryo Controller

    The Asia Cryo Controller is a high performance, ultra cold cooling module for flow chemistry reactions. This compact module requires only mains power to rapidly cool a selection of fluoropolymer or stainless steel tube reactors to -70°C or a range of glass or quartz microreactors…

  • Asia FLUX

    The Asia Flux is a flexible, tunable, continuous flow electrochemistry module. This compact module enables unique chemical transformations with ultimate ease of use. The module consists of a power supply and electrochemical flow cell. The cell, with minimal electrode gap, enables a wide range of…

  • Asia Pressure Controller

    The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…

  • Asia FLLEX (Flow Liquid Liquid EXtraction)

    The Asia FLLEX (Flow Liquid Liquid EXtraction) module is the flow chemistry equivalent of a separatory funnel. Operating continuously, this aqueous workup or extraction module initially mixes the organic product stream with an aqueous phase, then allows time for diffusion to occur before finally splitting…

  • Asia Sampler and Dilutor

    The Asia Sampler and Dilutor enables on-line reaction analysis by offering automated sample extraction, dilution and transfer to virtually any LCMS, GCMS, UPLC, etc. Without stopping the experiment, the Sampler and Dilutor automatically takes a 5µl sample (or multiple samples) from the flowing stream of…

  • Asia Automated Collector

    The Asia Automated Collectors (Mini and Regular) enable fully automated collection of multiple reactions. The Asia Automated Collectors allow the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. The 3-way valve automatically…

  • Asia Automator

    The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320 or 330 systems). Controlling a system from a PC: By connecting the Asia Automator and the Asia pump to a PC via USB, it is…

  • Asia Manager PC Software

    Asia Manager Software is an easy-to-use and intuitive PC software for total "walk-away" control of your Asia System. The software allows "chemist familiar" terms to be entered, e.g. required reaction time and temperature and reagent quantities, concentrations and equivalents to be used. The software then…

Optional modules

  • Asia Pressurized Input Store

    The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…

  • Asia Syringe Pump

    Designed specifically for flow chemistry, the ultra smooth Asia Pump is extremely chemically resistant and is rated to 20 bar (300psi).  This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…

  • Asia Automated Reagent Injector

    Asia Automated Reagent Injector allows automated aspiration and loading of multiple reagents into injection loops under inert conditions; and subsequent pressurization prior to injection. Removable racks for a range of vial sizes and pre-pressurization to avoid pressure drops within the reactions (up to 20 bar)…
