Pre-configured System

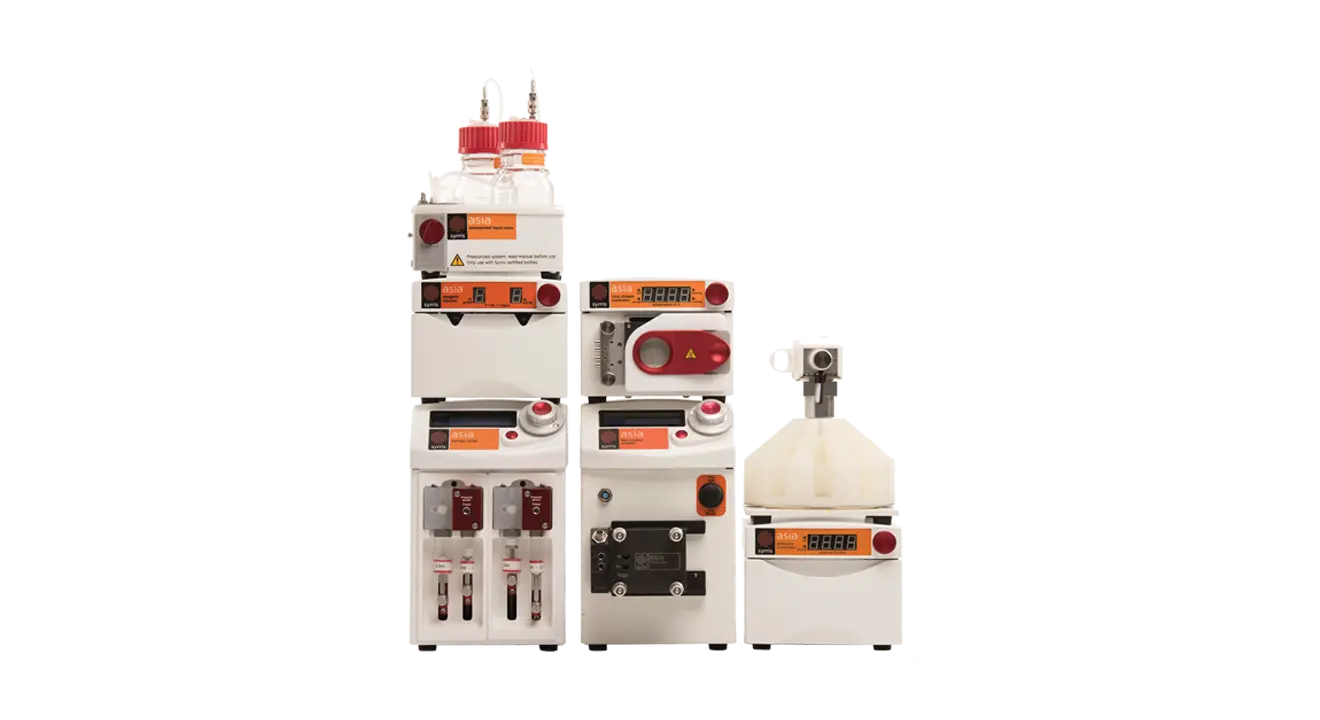

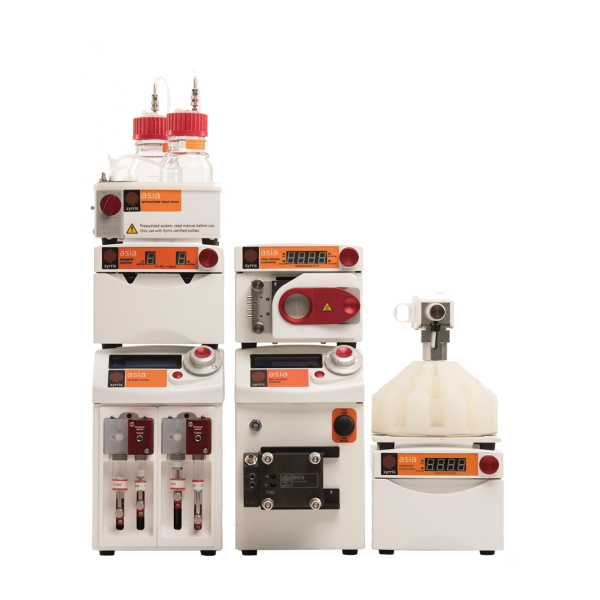

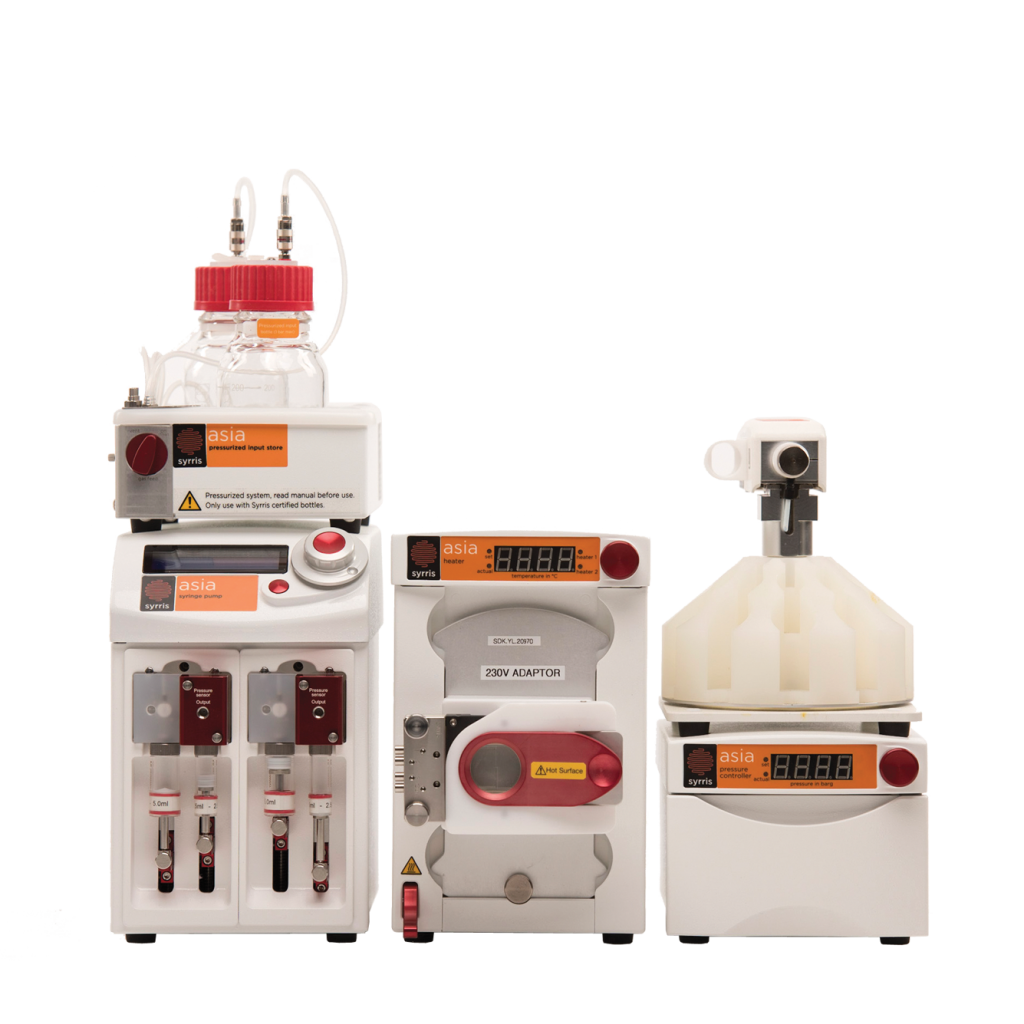

Asia Flow Electrochemistry System: The Scalable Continuous Flow Chemistry Solution
For easy access to flow electrochemical synthesis, enabling selectivity and transformations that are impossible to achieve through other chemical engineering techniques.
The Asia Flux module and cell can accommodate a wide range of electrodes, assembled without the need for tools. Users can operate in either constant current (Galvanostatic) mode or constant voltage (Potentiostatic) mode to achieve reduction and oxidation.
The easy-to-use and affordable systems contain all essential flow system parts. All Asia flow reactor systems are future-proof and can be seamlessly upgraded with additional features and modules as the user experience with flow electrochemistry grows and/or needs change.
All Asia systems are available as either regular or advanced configurations to suit different requirements and budgets, and all systems include the Asia Syringe Pump as a common module.
The easy-to-use and affordable systems contain all essential flow system parts. All Asia systems are future-proof and can be seamlessly upgraded with additional features and modules as the user experience with flow chemistry grows and/or needs change.
All Asia systems are available as either regular or advanced configurations to suit different requirements and budgets, and all systems include the Asia Syringe Pump as a common module.
Specifications
|
Regular System
|
Advanced System
|
|
|---|---|---|
| Flow rate |
1 μL/min to 10 mL/min*
|
|
| Pressure range |
0 to 5 bar
|
|
| Temperature range |
From ambient up to +60 °C
|
|
| Current (Galvanostatic mode) |
Continuous from 1 mA up to 999 mA
|
|
| Voltage (Potentiostatic mode) |
Continuous from 0.1 V up to 20 V
|
|
| Available electrodes |
Stainless steel, Carbon (graphite), Platinum coated, Magnesium, Copper
|
|
| Available gaskets |
PTFE, PEEK
|
|
| Pump channels |
2
|
4
|
| Chip reactors |
✔
|
✔
|
| Tube reactors |
✘
|
✔
|
| Column reactors |
✘
|
✔
|
| Electrochemistry |
✔
|
✔
|
| Flow cell volume |
225 μL
|
225 μL
|
| Product collection |
manual
|
automated
|
| Pressurized inputs |
✔
|
✔
|
| Injection valves |
2
|
4
|
| Automation |
✘
|
✔
|
*Depending on syringe size
Enhanced Features Description of the Asia Electrochemistry Flow Chemistry System
Specific Electrode Configurations
The Asia electrochemical reactor supports various electrode materials and configurations. This flexibility allows users to tailor the electrochemical cell for specific reactions, enhancing the selectivity and efficiency of electrochemical processes.
Ease of use
Designed with user-friendliness in mind, the system features tool-free assembly and intuitive controls. This ensures quick setup and minimal training requirements, allowing researchers to focus on their experiments.
Automation capabilities
The system includes advanced automation options, such as the Asia Automator and Manager PC Software. These features enable precise control over reaction conditions, ensuring reproducibility and consistency in complex experiments.
Unique transformations
The system’s continuous flow design facilitates unique chemical transformations that are difficult or impossible to achieve with batch processing. Its ability to selectively create specific compounds with precise control over reaction times and conditions results in increased yields and purity.
Future-proof design
This scalable solution is modular, allowing for easy upgrades and customisation. Users can add supplementary modules and features as their research needs evolve, ensuring that the system remains a valuable tool over time.
Comprehensive specifications
The system operates across a wide range of flow rates, pressures, and temperatures, accommodating various reaction types. It includes regular and advanced configurations, offering options for different research requirements and budgets.
Applications of the Asia Flow Chemistry System for Continuous Electrochemical Reactions
The Asia system is designed for various applications in organic chemistry. It’s a versatile tool for chemists and researchers in various industries, such as:
Pharmaceuticals: One key application is in drug discovery and development, where the system’s ability to perform continuous electrochemical flow allows for the efficient and selective synthesis of pharmaceutical compounds with high purity.
Materials Science: The system’s precise control over reaction conditions facilitates the synthesis of nanoparticles, essential for applications in medicine, electronics, and advanced materials.
Industrial Chemistry: Continuous flow capabilities ensure scalable and consistent chemical reactions, making it valuable for various industrial applications, including polymerisation and reagentless chemistry.
Here are the specific applications that make it so useful.
Polymerisation
The system ensures consistent, high-quality polymer products by controlling the flow rate, temperature, and pressure, which is crucial for producing speciality polymers used in advanced materials and coatings.
Electrochemical Reactions
This system excels in performing precise electrochemical synthesis, essential for synthesising complex molecules with high selectivity and efficiency.
Electrosynthesis
The system’s advanced electrochemistry cells and controlled environment ensure high purity and yield, which makes it ideal for the electrosynthesis of pharmaceutical compounds.
Continuous Flow Electrochemistry
The system’s continuous flow capabilities are pivotal for producing consistent and scalable chemical reactions, making it valuable for industrial applications.
Ion Reactions
The electrochemistry flow system facilitates ion exchange reactions. These support advanced research in materials science and nanotechnology and enable the creation of novel materials.
Supplementary Reactions
The modular design allows for the addition of supplementary modules, which can be used to enhance the system’s versatility to meet evolving research needs.
Reactor Versatility
Compatible with various reactor types, including chip and tube reactors, the system can be customised for specific applications, ensuring optimal performance.
OPC/UA Ready
Syrris Asia is totally integrated with the OPC/UA communication protocol, which allows the hardware being controlled by a 3rd party software e.g. Matlab®, LABView®, Docker® or even Python Scripts, without any restriction. This simplifies the creation of user’s own protocols and the integration with any other hardware
Modules
-
Pumping
-
Asia Pressurized Input Store
The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x […]
View module details -
Asia Syringe Pump
Designed specifically for flow chemistry the Asia Syringe Pump provides an ultra-smooth flow rate of 1.0 μL to 10 mL/min […]
View module details
-
-
Reagent Injection
-
Asia Reagent Injector
The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, […]
View module details
-
-
Flow Reactor
-
Asia Chip Climate Controller
The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC […]
View module details -
Asia FLUX Electrochemisty
The Asia FLUX is a flexible, tunable, continuous flow electrochemistry module. This compact module enables unique chemical transformations with ultimate […]
View module details -
Asia Heater
The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in […]
View module details
-
-
Post Reaction Modules
-
Asia Pressure Controller
The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 […]
View module details
-
-
Sample Collection
-
Asia Product Collector
The Asia Product Collector allows convenient collection of samples into a range of vessel sizes. The automated 3-way valve allows […]
View module details -
Asia Automated Collector
The Asia Automated Collectors (Mini and Regular) enable fully automated collection of multiple reactions. The Asia Automated Collectors allow the […]
View module details
-
-
Automation
-
Asia Automator
The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320, […]
View module details -
Asia Manager PC Software
Asia Manager Software is an easy-to-use and intuitive PC software for total walk-away control of your Asia System. The software […]
View module details
-
-
Optional modules
-
Asia Heater
The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in […]
View module details -
Asia Syringe Pump
Designed specifically for flow chemistry the Asia Syringe Pump provides an ultra-smooth flow rate of 1.0 μL to 10 mL/min […]
View module details -
Asia Reagent Injector
The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, […]
View module details -
Asia Automated Collector
The Asia Automated Collectors (Mini and Regular) enable fully automated collection of multiple reactions. The Asia Automated Collectors allow the […]
View module details -
Asia Automator
The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320, […]
View module details -
Asia Manager PC Software
Asia Manager Software is an easy-to-use and intuitive PC software for total walk-away control of your Asia System. The software […]
View module details
-
Support
These support articles may be helpful for this system
Get in touch for more information
Do you have questions or need more details? Contact our expert team for more information on how the Asia Flow Electrochemistry System can meet your specific needs.
