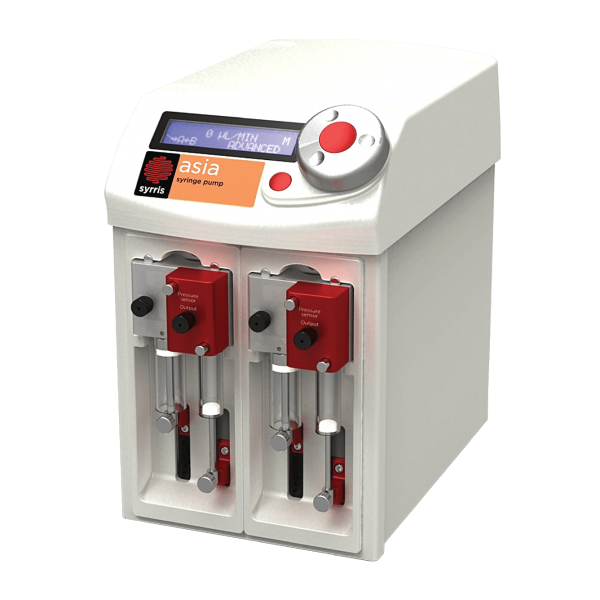

Asia Flow Chemistry Syringe Pump

Designed specifically for flow chemistry, the ultra-smooth Asia Flow Chemistry Syringe Pump offers ultra-smooth flow from 1.0 μL to 10 mL/min and can be used in standalone mode or with PC control and is perfect for all your lab’s flow chemistry.

At a glance

Pump volatile, viscous, and corrosive liquids

The Asia Syringe Pump’s patented design enables it to smoothly pump solvents not possible with High-Performance Liquid Chromatography (HPLC)-style pumps, such as volatile solvents (e.g. DCM and ether), viscous liquids, and corrosive liquids. This ability enables chemists to perform a wider range of flow chemistries with greater confidence and reliability in results

The Asia Syringe pump is an ultra smooth and extremely chemistry resistant syringe pump from Syrris. It can be used in isolation or as part of an Asia system. It is designed specifically for flow chemistry and features patented technology.

Flexible control modes

The Asia Syringe Pump can be operated in standalone mode using the click wheel control and screen, or controlled by the Asia PC Manager Software; either mode offers quick and easy flow rate control.

When used as part of a larger flow chemistry system, the Asia Syringe Pump accurately controls and runs complex flow chemistry experiments with the click of a button.

The Asia Syringe Pump’s standalone control enables it to be used with your existing RS232-enabled equipment, and its lightweight design and small footprint allow chemists to easily move it around the lab.

Benefits of the Asia Syringe Pump

      • Flexible: The Asia Syringe Pump offers two independent flow channels (each with integrated pressure sensing)
      • Extremely smooth flow rate: Incredibly smooth flow rate is provided by each channel
      • Wide pressure range: Operating pressure of 20 bar (300psi)
      • Safe: PTFE pressure sensor on each channel with automatic overpressure stop
      • No tools required: Replace valves, syringes and pressure sensors without the need for tools
      • Easy to use on its own: Twist and click control knob and large LCD display
      • Wide flow rate range: 1.0 μL to 10 mL/min
      • Intelligent: PC Software enables quick and easy control of flow chemistry process
      • Compact: The Asia Syringe Pump is just 16cm (6.3″) wide
      • Excellent chemical compatibility: PTFE (and other fluorinated polymers) and glass only

Asia syringe volumes and flow rates

      • Asia Yellow Syringes (50 µL / 100 µL): 1.0 µL to 250 µL/min)
      • Asia Green Syringes (250 µL / 500 µL): 5.0 µL to 1.25 µL/min)
      • Asia Blue Syringes (500 µL / 1 mL): 10 µL to 2.5 mL/min)
      • Asia Red Syringes (2.5 mL / 5 mL): 50 µL to 10 mL/min

Specifications

Flow rate range

1.0 μL to 10 mL/min

Footprint

16cm (6.3″) wide

Syringe sizes

50 μL, 100 μL, 250 μL, 500 μL, 1 mL, 2.5 mL , or 5 mL

Wetted Parts

PTFE (and other fluorinated polymers) and glass only

Number of syringes

2 per pump

Maximum pump pressure

Up to 20 bar (300psi)


Applications

This product is suitable for the following applications.
