Pre-configured System

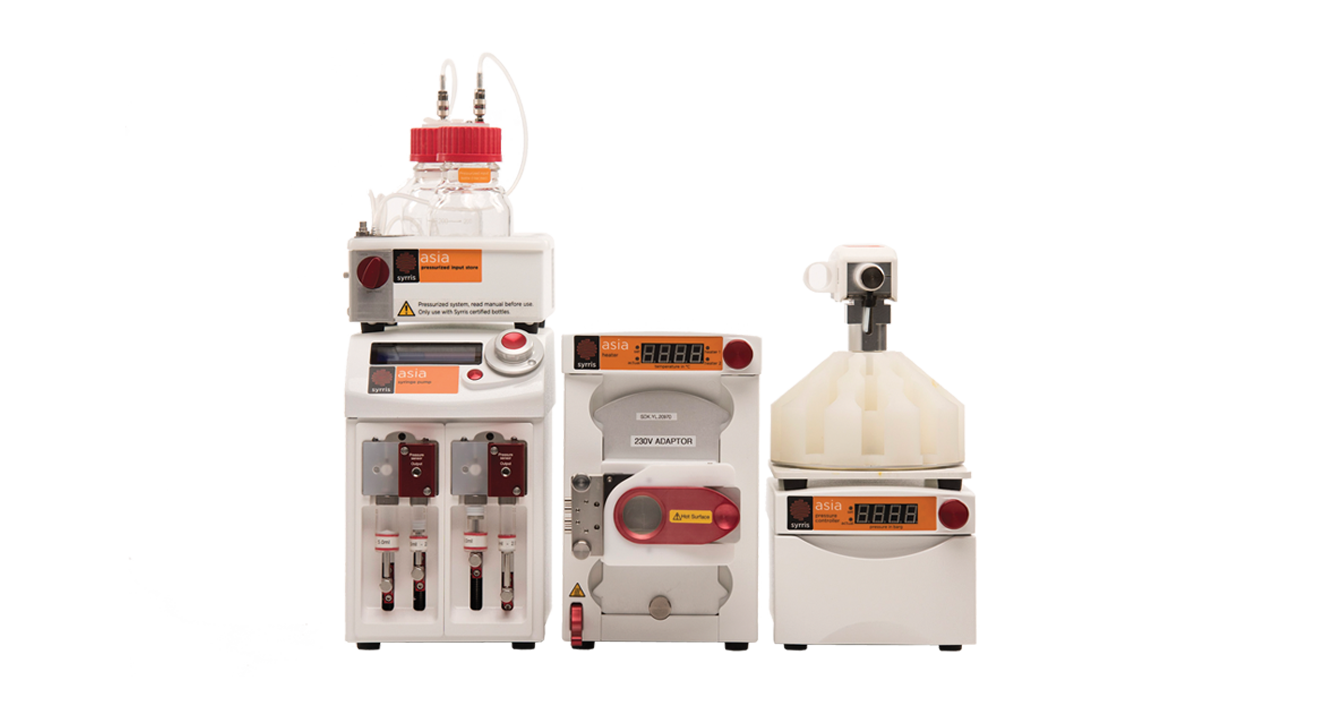

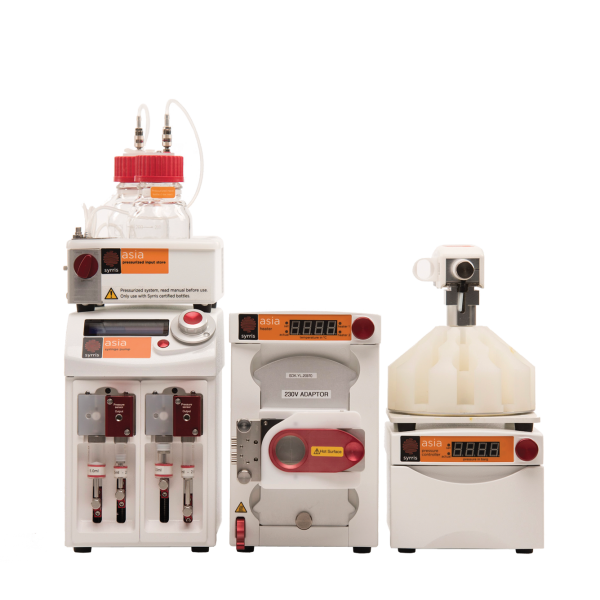

Asia Nanoparticle Flow Chemistry System
Performs nanoparticle synthesis in flow with fast and reproducible mixing, excellent heat transfer and accurate temperature control.
The Asia Nanoparticle Flow Chemistry systems are ideal for rapid optimization and production of nanoparticle synthesis.
The easy-to-use and affordable systems contain all essential flow system parts. All Asia systems are future-proof and can be seamlessly upgraded with additional features and modules as the user experience with flow chemistry grows and/or needs change.
All Asia systems are available as either regular or advanced configurations to suit different requirements and budgets, and all systems include the Asia Syringe Pump as a common module.
Specifications
|
Regular
|
Advanced
|
|
|---|---|---|
| Flow rate |
1 μL/min to 10 mL/min*
|
|
| Pressure range |
0 to 20 bar**
|
|
| Temperature range |
+45 °C to +250 °C
|
-15 °C to +250 °C
|
| Pump channels |
2
|
4
|
| Chip reactors |
✔
|
✔
|
| Tube reactors |
✔
|
✔
|
| Product collection |
manual
|
automated
|
| Pressurized inputs |
✔
|
✔
|
| Injection valves |
✘
|
4
|
| Automation |
✘
|
✔
|
*Depending on syringe size
**10 bar when using fluoropolymer tube reactors
Modules
-
Pumping
-
Asia Pressurized Input Store
The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x […]
View module details -

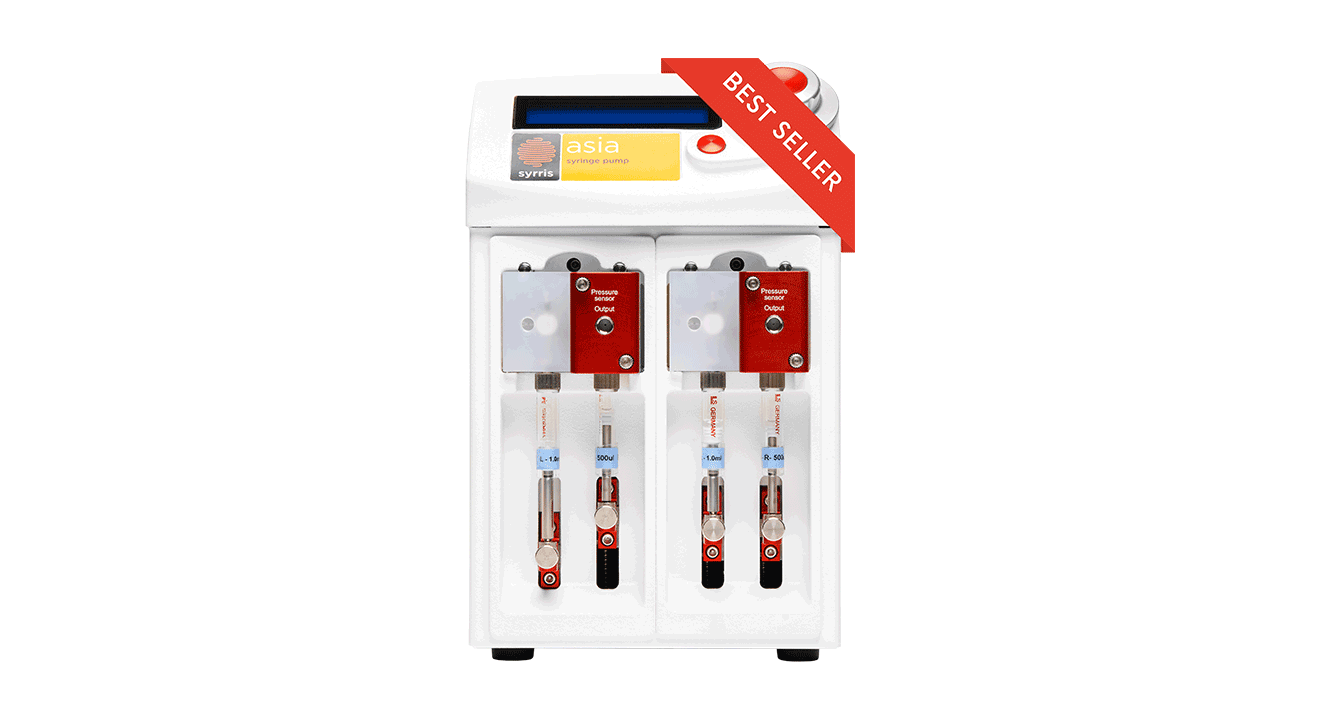

Asia Syringe Pump
View module details
-
-
Flow Reactor
-
Asia Heater
The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in […]
View module details
-
-
Post Reaction Modules
-
Asia Pressure Controller
The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 […]
View module details
-
-
Sample Collection
-
Asia Product Collector
The Asia Product Collector allows convenient collection of samples into a range of vessel sizes. The automated 3-way valve allows […]
View module details -
Asia Automated Collector
The Asia Automated Collectors (Mini and Regular) enable fully automated collection of multiple reactions. The Asia Automated Collectors allow the […]
View module details
-
-
Reagent Injection
-
Asia Reagent Injector
The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, […]
View module details
-
-
Automation
-
Asia Automator
The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320, […]
View module details -
Asia Manager PC Software
View module details
-
-
Optional modules
-
Asia Syringe Pump
View module details -
Asia Reagent Injector
The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, […]
View module details -
Asia Heater
The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in […]
View module details -
Asia Automated Collector
The Asia Automated Collectors (Mini and Regular) enable fully automated collection of multiple reactions. The Asia Automated Collectors allow the […]
View module details -
Asia Automator
The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320, […]
View module details -
Asia Manager PC Software
View module details
-
