Atlas HD Automated Jacketed Reactor
Atlas HD is an automated, modular jacketed reactor platform for R&D chemists and chemical engineers. Atlas HD enables supreme flexibility with seamless interchangeability of jacketed reactors from 50 mL to 5 L.
- Automation with built-in safety protocols enables walk-away chemistry
- Tool-free vessel changes and easy cleaning, from 50 mL to 5 L on one system
- Full recipe control and real-time reaction monitoring and graphing
- Download the Atlas HD product brochure
At a glance
Atlas HD is used extensively in process development groups around the world and provides chemists with safe and automated control of their process.
Atlas HD can be tailored to your chemistry needs with a wide temperature range of -90 to +250 oC, stirring options, and pressures from vacuum to 200 bar. A range of sensors including turbidity, temperature, pressure, and pH can be configured in addition to automated dosing options using the Atlas Syringe Pump.
Atlas HD’s touchscreen software automation and built-in safety protocols help you create consistent chemistry, even when you’re away from the lab.
1. Reproducible chemistry
Atlas HD ensures you create reproducible chemistry every time by providing total control over your reaction parameters – including stirring speed, dosing, and temperature. Atlas HD controls your chemistry and dosing even when you’re away from the lab.
2. Automation at your fingertips
Intuitive touchscreen control delivers unmatched capability to define, run, and monitor reactions. Automation can be configured directly on the Atlas HD Base, while more complex experiments can draw on the power of the Atlas PC Software.
3. Designed for daily use
Clever design features and robust build quality ensures ease-of-use and years of service. The quick clamp system enables fast and easy vessel cleaning, and the Scorpion Motor can be simply clicked into place with its quick release system.
4. Flexible for all your lab needs
Atlas HD’s modular design makes it easily configured for a range of volumes and specifically tailored for applications including reaction calorimetry, (sono)crystallization, process optimization and development, polymerization, and many more.
Atlas HD automation options
Atlas HD offers a range of automation options. Full experiment creation and complex dosing profiles can be programmed directly on the Atlas HD Base, while more complex chemistry setups can be created using the Atlas PC Software.
Automation on the Atlas HD Base
Atlas HD’s touchscreen enables chemists to program complex multi-step experiments and safety shutdown protocols for walk-away chemistry, directly on the Atlas HD Base. Complex dosing profiles, such as pH- and temperature-controlled dosing, can also be setup directly on the Base.
With a familiar smartphone app “feel”, Atlas HD’s touchscreen base is incredibly easy to use and intuitive, ensuring new and experienced users can create consistent, walk-away chemistry in minutes.
Automation using Atlas PC Software
Some chemistry requires more complex set-up, and that’s where the power of Atlas PC Software comes in. An easy-to-use PC application for the control and analysis of experiments, capable of configuring and controlling Atlas HD and virtually any manufacturer’s RS232-enabled lab apparatus (e.g. stirrer motors, circulators, RTDs, pumps, balances etc.). The software’s “drag and drop” interface means complex recipes can be created, changed and saved with a click of a mouse.
If you would like to find out more about our automation options, a Syrris representative can discuss all our options and advise on the best approach for automating your process. Contact us today and your local contact will provide the information you need.
|Vessel Volume Range||
50 mL, 100 mL, 250 mL, 500 mL, 1 L, 2 L (DN80), 1 L, 2 L, and 5 L (DN150)
Torispherical, Conical, Round Bottom
Jacketed, Vacuum Jacketed
|Other Vessel Types||
No (Round Bottom Flasks Available with Regular Atlas Base)
-90°C to 250°C (with suitable seal kit)
Scorpion Overhead Stirrer (up to 800rpm/11Ncm torque), High Speed Available, High Torque Available
Yes – as standard
|Modes of Operation||
Atlas HD Touch Screen Control, Atlas PC Software, Manual Operation
Temperature, pH, Pressure, Turbidity, In-situ FTIR, Other Sensors Available
Vacuum (50mbar) to 0.5 Bar, See Atlas 200 Bar Pressure Systems for High Pressure up to 200 Bar, See Atlas 3 Bar Pressure Systems for High Pressure up to 3 Bar

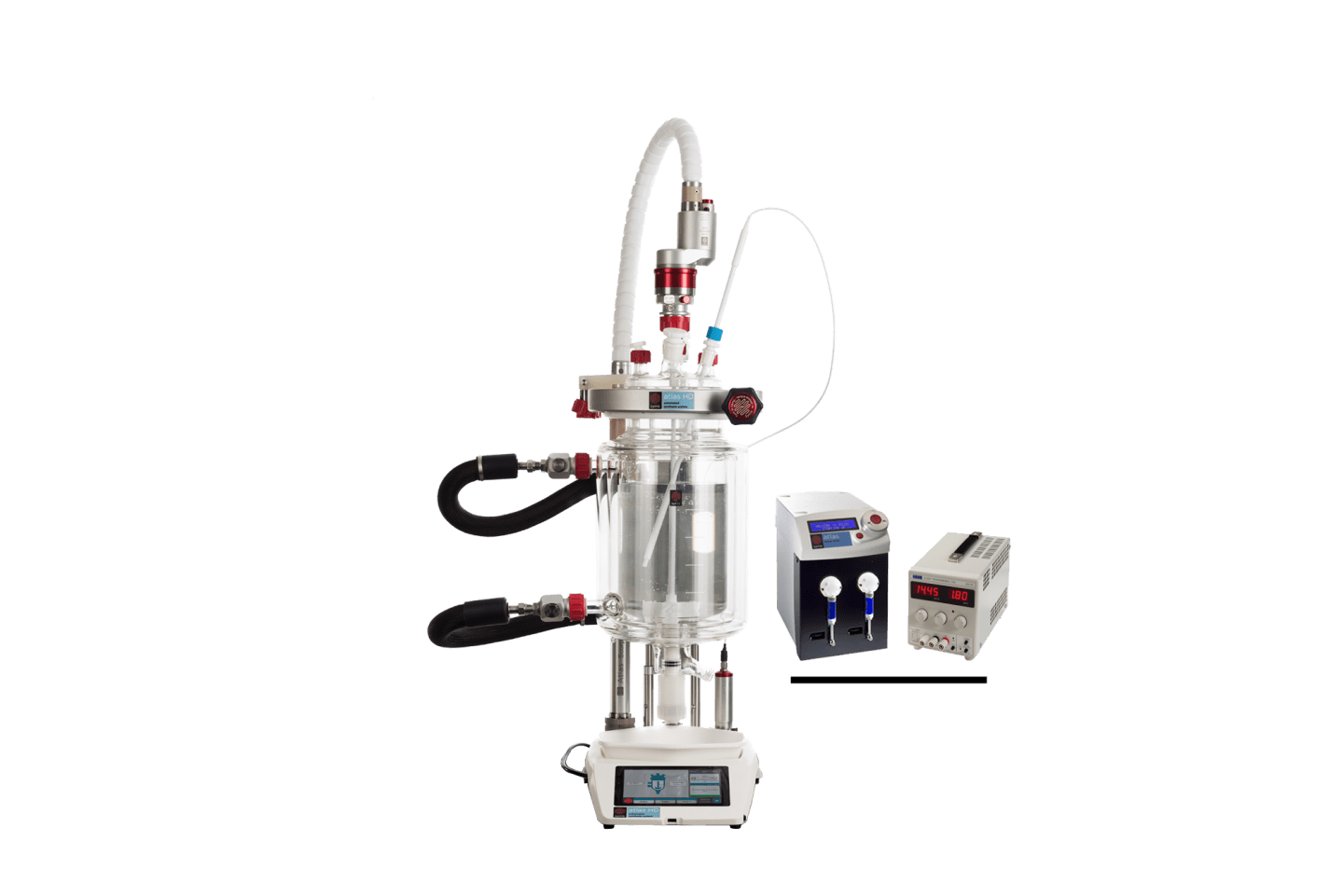

Ability to Upgrade to Reaction Calorimetry, See Atlas HD Calorimeter
|Reagent Addition and Sampling||
Manual Dosing, Automated Dosing (Volumetric), Automated Dosing (Gravimetric), Sampling of Liquids, Full Gas Control, Atlas Syringe Pump Range
Questions & answers
What warranty do Syrris systems come with and what does it cover?
All Syrris hardware comes with a one year (non-wetted) parts warranty. Please see the Terms and Conditions for further information.
Does Syrris provide an installation service?
Yes, Syrris offer a complete system Installation and Training service. Please talk to your Sales representative for pricing structure.
Does Syrris provide an extended warranty/support package?
Yes, Syrris can provide a bespoke extended warranty and/or support package for your system. Please talk to your Sales representative for pricing structure.
Will I have a dedicated Account Manager I can deal with?
Yes, you’ll have a dedicated Account Manager assigned to you based on your location.
- Where can I see the products in person?
Is custom glassware available?
Yes, our expert glassblowers can design and manufacture custom glassware upon request.
Are wetted parts chemically resistant?
All wetted parts are made from either glass, PTFE, FFKM or other similar fluoropolymers.
What circulators are Atlas HD compatible with?
Julabo Presto and Huber Pilot One circulators can be controlled directly from the Atlas HD base. For all other RS232 controlled circulators, PC/Atlas 1 software is required.
What are the product dimensions and power requirements of Atlas HD?
Smallest vessel: 108cm H x 54cm W x 45cm D
Largest vessel: 115cm H x 58cm W x 45cm D
Power: 100-240 VAC, 50/60 Hz, 5A Fuse
What clamps are needed for each vessel size?
- DN80: 50ml, 100ml, 250ml, 500ml, 1L, 2L, 3L
- DN150: 1L, 2L, 3L, 5L
Can you perform a feasibility study for our chemistry prior to purchasing?
Yes. Please speak to a member of the Sales team to discuss further.
