Atlas HD Potassium for automated organic chemistry

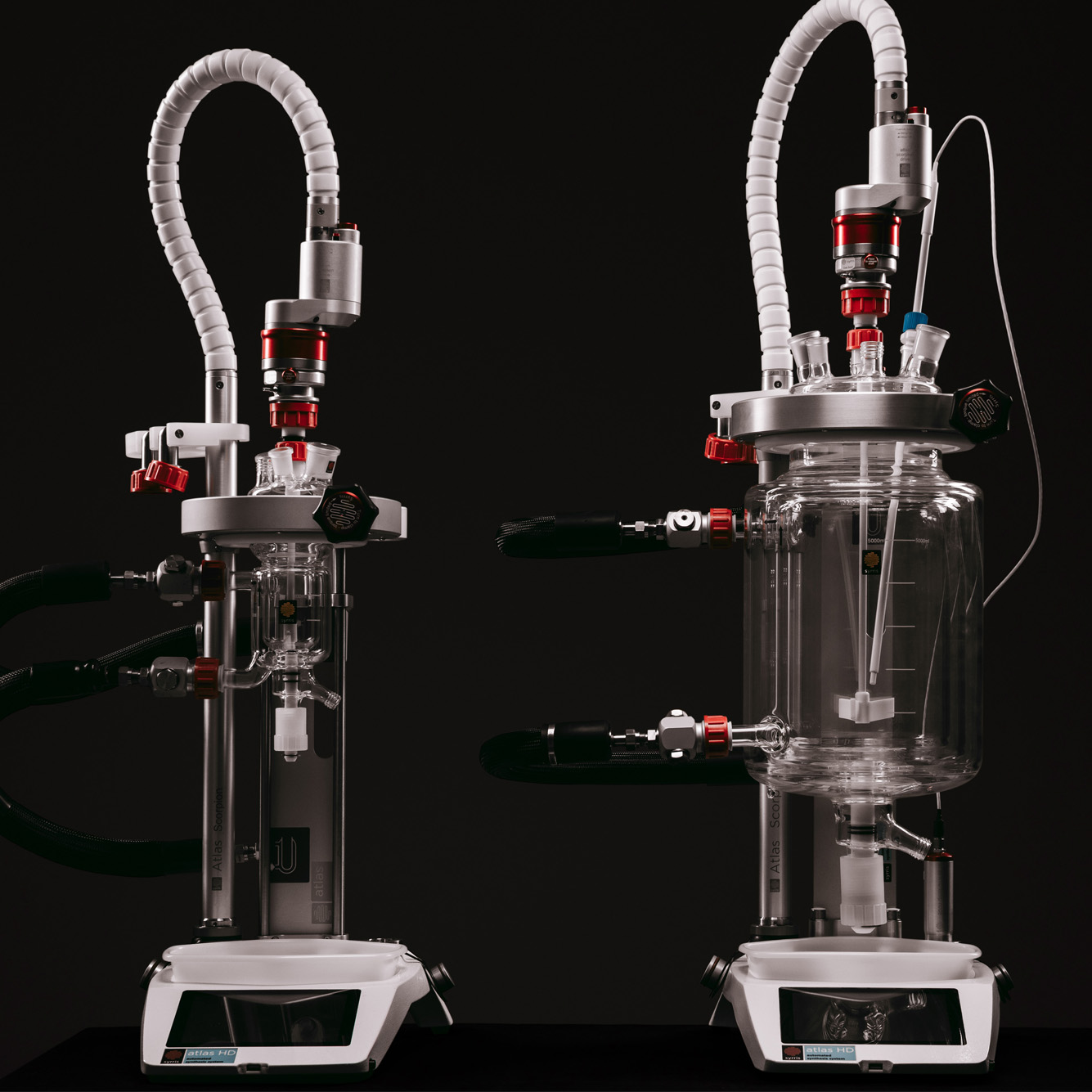

Atlas HD is an automated, modular jacketed reactor platform for R&D chemists and chemical engineers. Atlas HD enables supreme flexibility with seamless and tool-free interchangeability of jacketed reactors from 50 mL to 5 L
The French-USA Organic Chemistry Meetingto
- View all events
At a glance
Atlas HD can be tailored to your chemistry needs with a wide temperature range of -90 to +250 oC, stirring options and pressures from vacuum to 200 bar. A range of sensors including turbidity, temperature, pressure, and pH can be configured in addition to automated dosing options using the very successful Atlas Syringe Pump.
1. Control at your fingertips

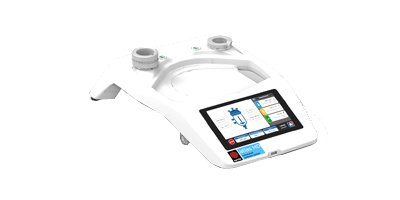

The Atlas HD Potassium system has an intuitive touch screen control base, delivering unmatched capability to define and monitor reaction conditions over a broad range of working volumes. The touch screen allows you to change parameters such as stirring, heating and dosing in real time and displays all data in a graphical way. Further automation can be provided using PC software for complete experimental control.
2. Wide vessel range with seamless interchangeability
Seamlessly drain the oil from your jacketed reactor using the oil drain unit and change reactors in minutes. The system has a wide range of vessel sizes from 50 mL to 5 L which are all accommodated on one platform. The tool-free vessel clamp enables the reactors to be supported to ensure safe vessel change without any fuss or spillages.
3. Tailor the system to your process
The Atlas HD system has been designed by chemists who understand the issues around current fixed systems. Atlas HD is simple to configure; simply select desired reactor volume, probes and sensors and start your reaction. Choose from temperature, pH, turbidity, pressure sensing and plug directly into the base unit. If you want to monitor your process with another sensor, Syrris can control 3rd party devices using the Atlas PC software. Contact one of our chemists who can help with your configuration.
4. Precise temperature control
The system has a wide temperature range from -90 to +250 oC with accurate temperature control using either the touch screen base or PC control software. Simply connect a compatible circulator to the base unit or PC software and precision temperature algorithms will ensure your process performs without issues.
5. Easy to upgrade
Thanks to the modular design of the Atlas HD, it is easy to upgrade to a range of specific applications including pH control, crystallization, high pressure and reaction calorimetry systems.
6. Robust and reliable
Built on the foundations of the highly successful Atlas classic system, Atlas HD has been designed specifically for use in chemical laboratories.
|Vessel Volume Range||
50 mL, 100 mL, 250 mL, 500 mL, 1 L, 2 L (DN80), 1 L, 2 L, and 5 L (DN150)
Torispherical, Conical, Round Bottom
Jacketed, Vacuum Jacketed
|Other Vessel Types||
No (Round Bottom Flasks Available with Regular Atlas Base)
-90°C to 250°C (with suitable seal kit)
Scorpion Overhead Stirrer (up to 800rpm/11Ncm torque), High Speed Available, High Torque Available
Yes – as standard
|Modes of Operation||
Atlas HD Touch Screen Control, Atlas PC Software, Manual Operation
Temperature, pH, Pressure, Turbidity, In-situ FTIR, Other Sensors Available
Vacuum (50mbar) to 0.5 Bar, See Atlas 200 Bar Pressure Systems for High Pressure up to 200 Bar, See Atlas 3 Bar Pressure Systems for High Pressure up to 3 Bar
Ability to Upgrade to Reaction Calorimetry, See Atlas HD Calorimeter
|Reagent Addition and Sampling||
Manual Dosing, Automated Dosing (Volumetric), Automated Dosing (Gravimetric), Sampling of Liquids, Full Gas Control, Atlas Syringe Pump Range
Questions & answers
What warranty do Syrris systems come with and what does it cover?
All Syrris hardware comes with a one year (non-wetted) parts warranty. Please see the Terms and Conditions for further information.
Does Syrris provide an installation service?
Yes, Syrris offer a complete system Installation and Training service. Please talk to your Sales representative for pricing structure.
Does Syrris provide an extended warranty/support package?
Yes, Syrris can provide a bespoke extended warranty and/or support package for your system. Please talk to your Sales representative for pricing structure.
Will I have a dedicated Account Manager I can deal with?
Yes, you’ll have a dedicated Account Manager assigned to you based on your location.
- Where can I see the products in person?
Is custom glassware available?
Yes, our expert glassblowers can design and manufacture custom glassware upon request.
Are wetted parts chemically resistant?
All wetted parts are made from either glass, PTFE, FFKM or other similar fluoropolymers.
What circulators are Atlas HD compatible with?
Julabo Presto and Huber Pilot One circulators can be controlled directly from the Atlas HD base. For all other RS232 controlled circulators, PC/Atlas 1 software is required.
What are the product dimensions and power requirements of Atlas HD?
Smallest vessel: 108cm H x 54cm W x 45cm D
Largest vessel: 115cm H x 58cm W x 45cm D
Power: 100-240 VAC, 50/60 Hz, 5A Fuse
What clamps are needed for each vessel size?
- DN80: 50ml, 100ml, 250ml, 500ml, 1L, 2L, 3L
- DN150: 1L, 2L, 3L, 5L
Can you perform a feasibility study for our chemistry prior to purchasing?
Yes. Please speak to a member of the Sales team to discuss further.
