Automation Solutions

Syrris Automation tools are design to provide ultimate flexibility while empowering you to design experiments that could never be achieved manually

At a glance

Syrris’ manual jacketed reactors – the Orb jacketed reactor and Orb Pilot scale-up reactor – can be upgraded to full automation through the use of the Reactor Master module, Reactor Master PC software, and the Atlas Pumps.  Extend the functionality of your manual reactors with Automation, from Syrris.

Syrris Atlas PC Software 1 - Screenshot 1

Reactor Master Software - Simple Drag and Drop Functionality

Reactor master software uses a simple drag and drop menu that allows you to design your experiment, add conditional steps, devices, monitor and record parameters. It can control and monitor virtually every conceivable parameter you might require

Syrris Atlas PC Software 1 - Screenshot 3

Reactor Master Software - Easily Retrieve, Share, and Analyze Data

Data is easily retrieved, shared and analyzed. Experiments can be saved, modified and reused to save time and speed up your process optimization.

  • Automate wide variety of 3rd party products (pumps, balances, sensors)
  • Set end conditions
  • Set ramps and conditional steps
  • Compare data from multiple experiments, (requires reporting option)

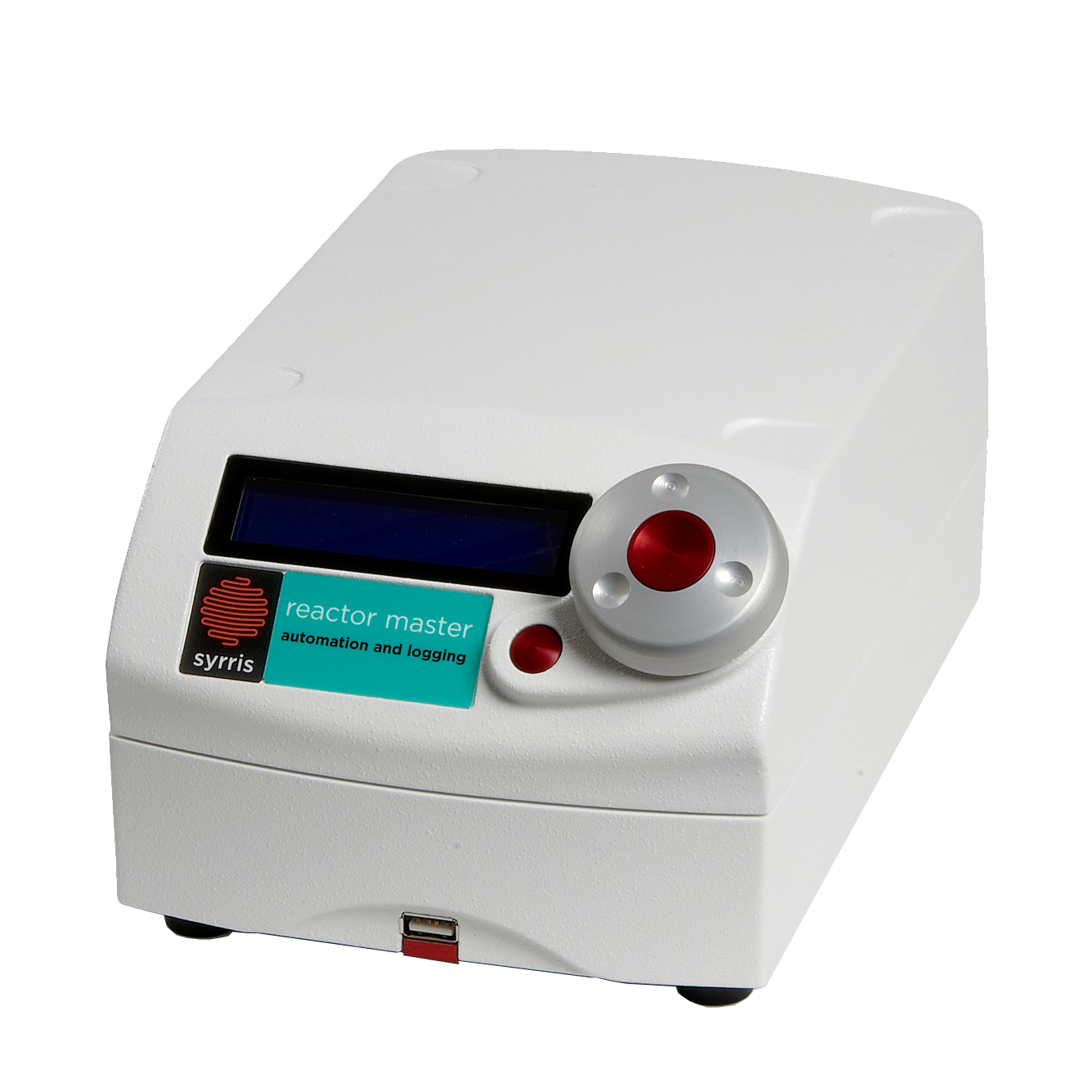

Syrris Reactor Master Module

Reactor Master Module

The Reactor master module offers powerful standalone automation or can be coupled with the PC software to provide more complex controls. It also provides connectivity for Stirrer motors, circulators, and a wide variety of sensors to simplify system configuration

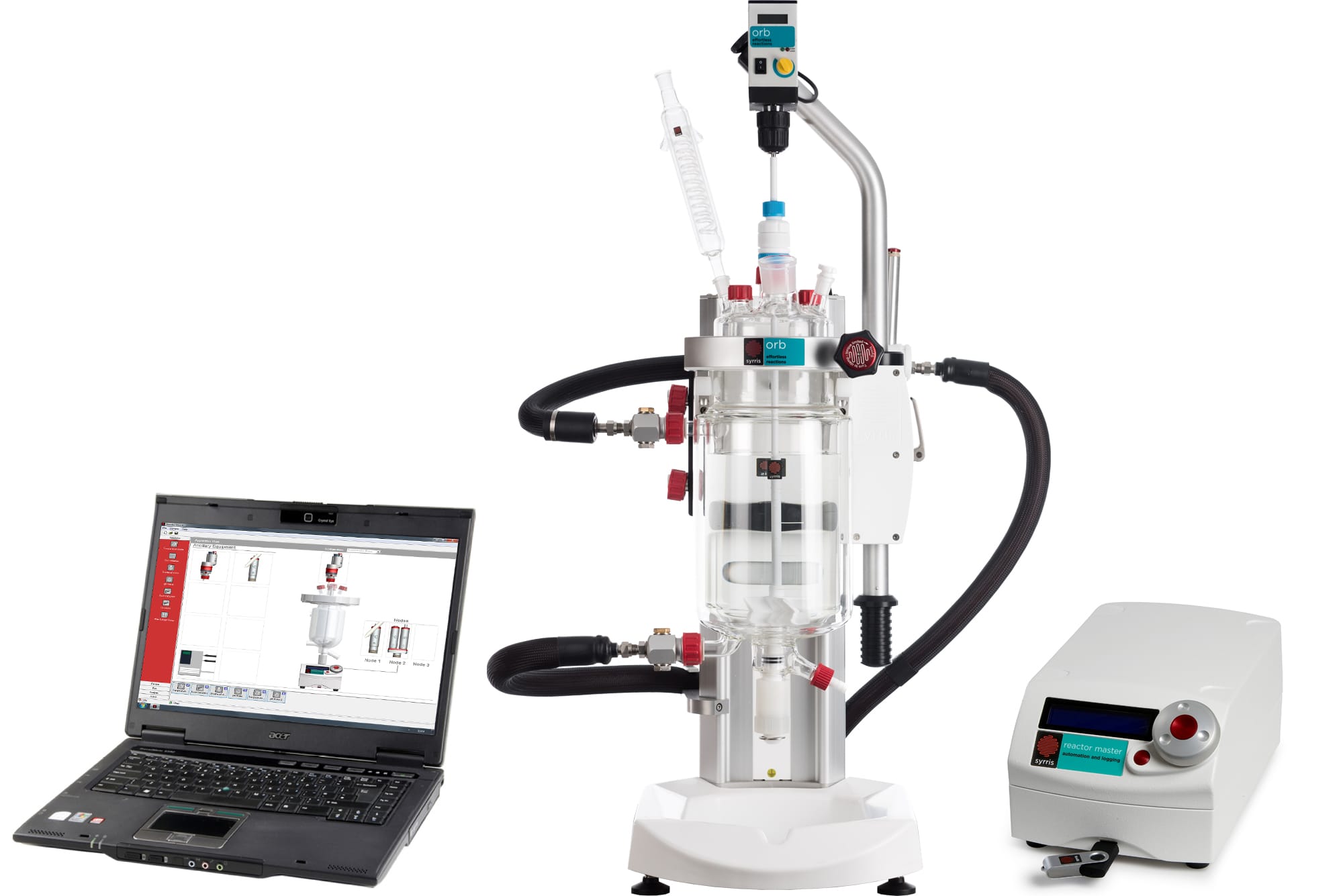

Syrris Orb with Reactor Master and Laptop

Reactor Master - An Ideal Partner for Orb and Orb Pilot

The Reactor Master module is an ideal partner for Orb and Orb Pilot. Upgrading to automation not only improves experimental consistency but also acts as a permanent record of each process. Data logs are easily exported via USB and can be simply analyzed and archived.

  • Simply connect temperature, pH, stirrer motor, circulator
  • Use twist and click knob for onboard programming which allows set points, ramps or profiles for temperature, stirring speed and reagent dosed or add full PC control
  • Easy download of logs via USB
  • Compact footprint, 16 x 24cm (6½ x 9½”) fits conveniently by the reactor system

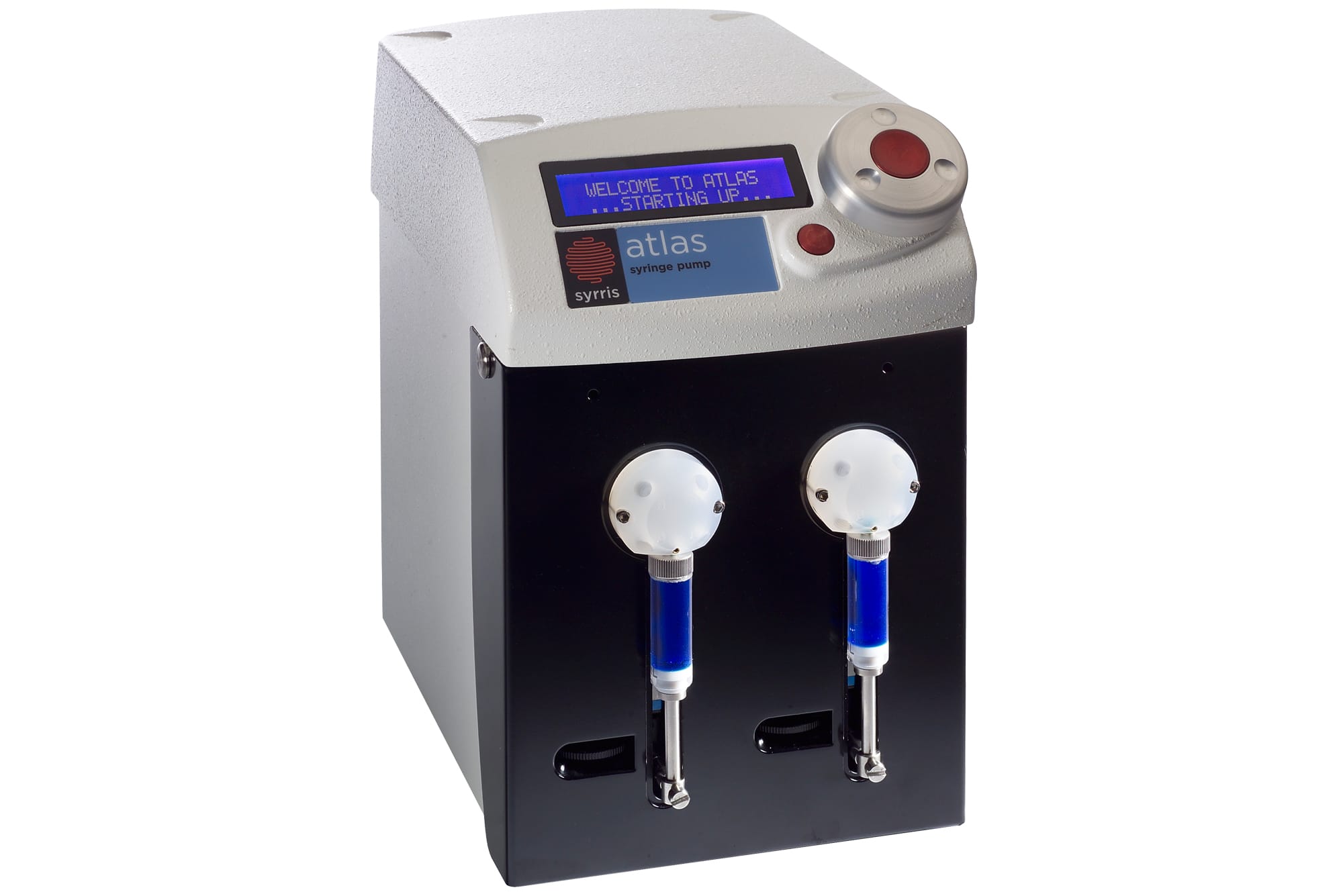

Syrris Atlas Syringe Pump

Atlas Pump

The Atlas Syringe Pump is a versatile volumetric dosing and/or sampling system. The tandem syringes and multi-port valves enable flexible dosing options, 10 into 1, 1 into 10, 5 into 2 etc.

Onboard intelligent control of pH and temperature dependent dosing make are enabled by temperature and pH probes connecting directly to the pump. Atlas Syringe Pump a great partner as a standalone or addition to your automated reactor.

  • Flexible: Use as 2 refilling pump channels or 1 continuous pump channel or an autosampler
  • Easy to use on its own: Twist and click control knob and large display
  • Automated reagent addition: Dispense simply by volume or flow rate over a time period or create advanced flow profiles
  • Versatile: 10 reagents to one reactor, 1 reagent to 10 reactors, 5 reagents to 2 reactors, one continuous flow, etc.
  • Automated reaction sampling: Use with the Autosampler module to regularly aspirate samples into 2ml HPLC vials
  • Wide flow rate range: 5 µL/min to 20 mL/min (5 µL/min to 200 mL/min with the Atlas Syringe Pump XL)
  • Intelligent: Pump to control pH or pause if a reaction temperature is exceeded. Full data logging to a csv file
  • Compact size: Fits conveniently alongside reactor. Excellent chemical compatibility: PTFE, PCTFE, and glass

Specifications

Jacketed Vessels

Used to Automate Any Reactor

Automation

Yes

Modes of Operation

ChemiSens PC Software Control, Automation Using Reactor Master

Reaction Calorimetry

Options Available

Reagent Addition and Sampling

Atlas Syringe Pump Range


Applications

This product is suitable for the following applications.
