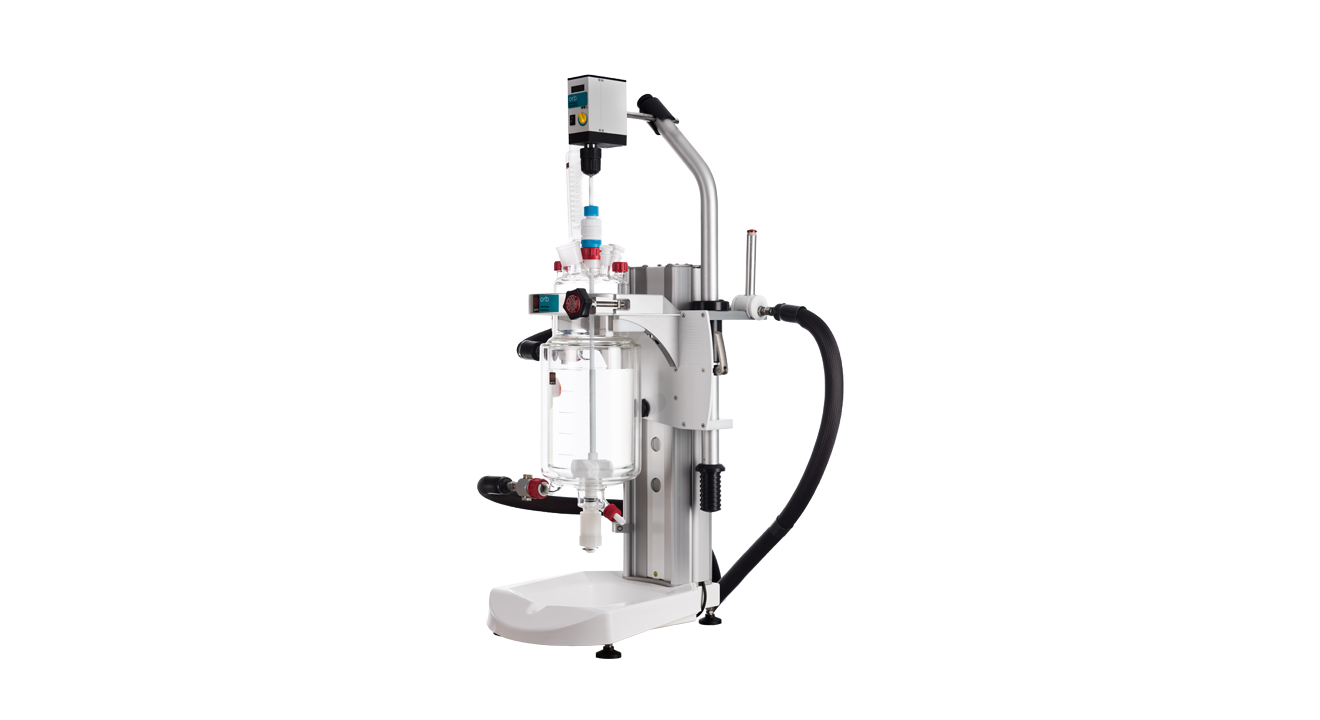

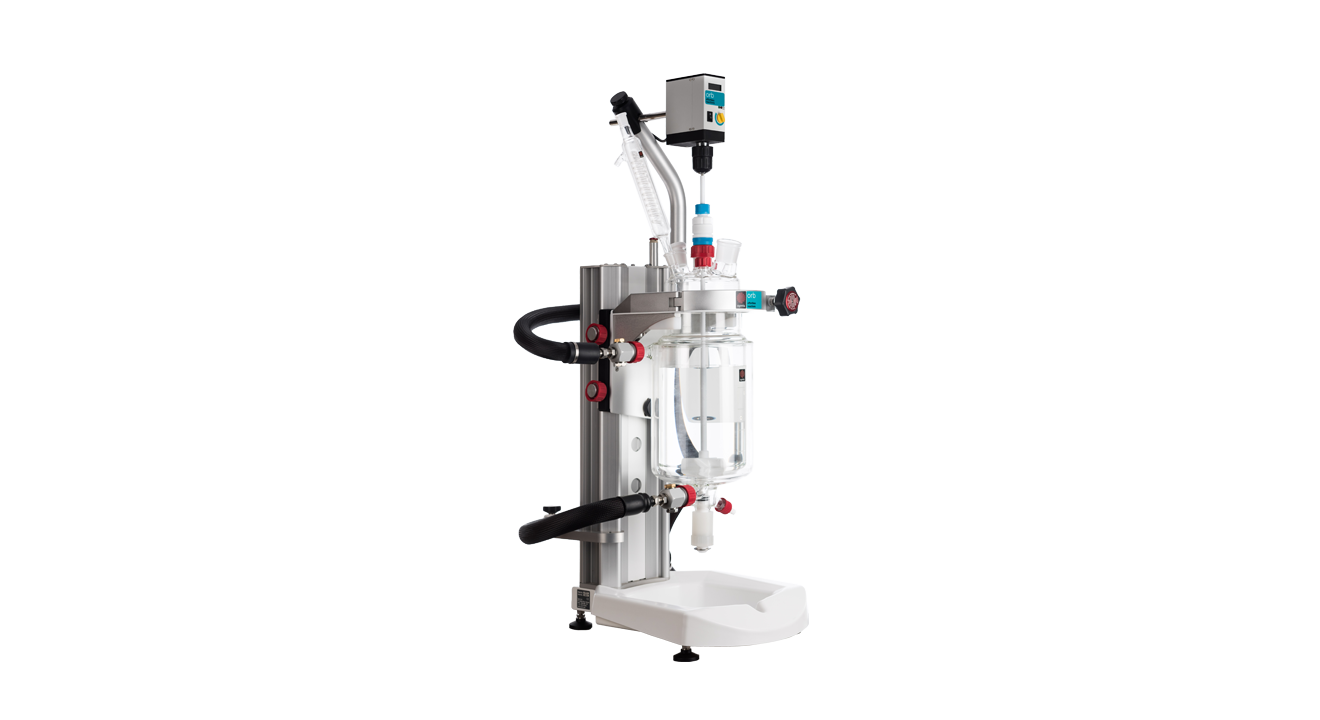

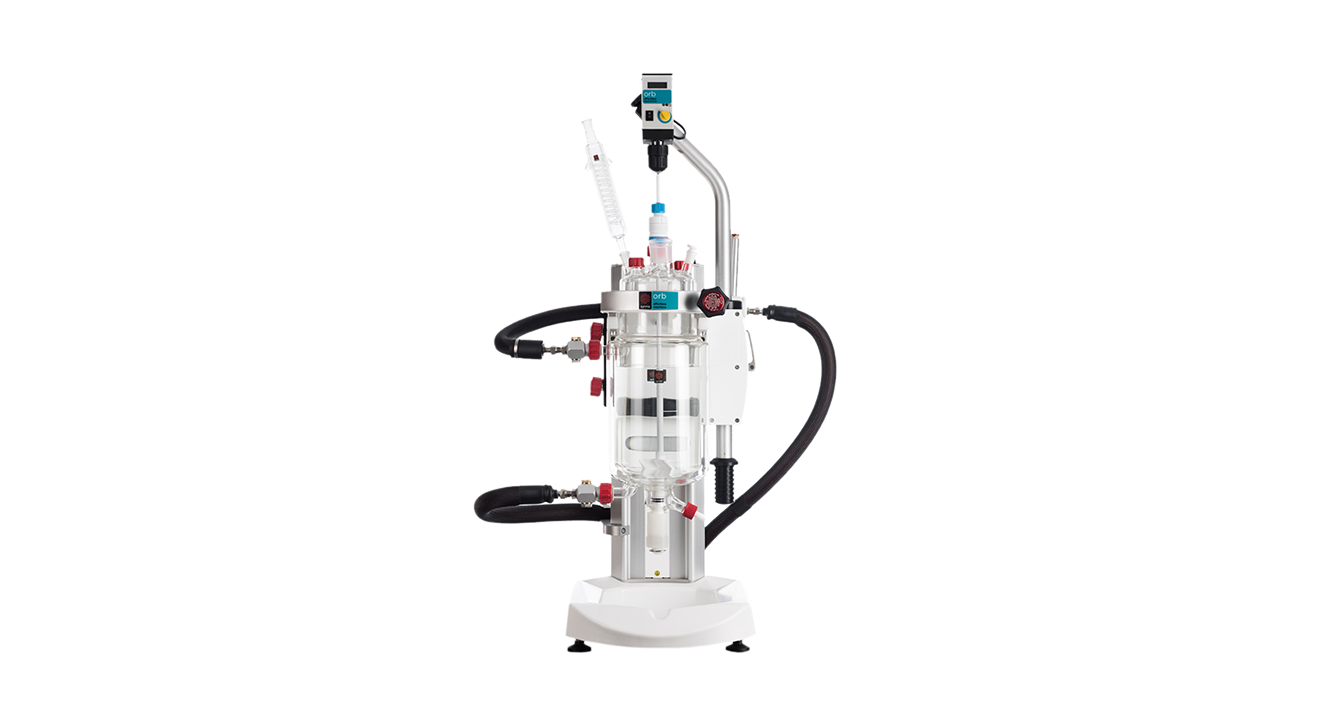

Orb Jacketed Reactor

Designed with simplicity and flexibility in mind, Orb is the jacketed reactor system combining high performance and excellent value.

At a glance

Orb’s intuitive design makes using jacketed reactors simple with the ability to use a wide vessel range from 100 mL to 10 L on one system. The compact design saves space and provides a robust, reliable platform to suit your chemical processes.

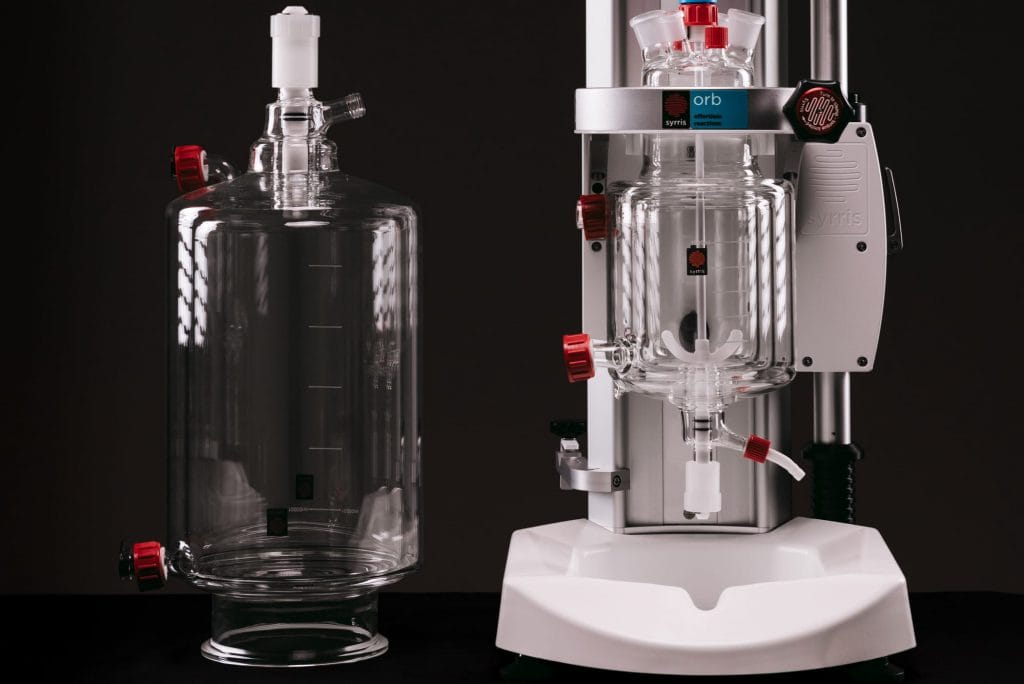

A photograph of a Syrris Orb jacketed reactor with a small vessel installed and a large spare vessel next to it

1. Wide range of vessels

One Orb, multiple vessels.  The Orb technology allows vessels from 100 mL to 10 L to be utilised on one system.   Single jacket or vacuum jacketed reactors in torispherical or round bottom profiles can be used on the system.  Torispherical reactors are the ideal choice for your scale up studies.

A photograph of the Syrris Orb jacketed reactor quick clamp system

2. Quick vessel change

The unique vessel clamp, oil drain function and quick connections allow vessels to be interchanged in minutes providing the utmost in flexibility.  Simply lift the stirrer motor out of the way, unlock the clamp and you can remove the reactor and lid.  The oil drain function allows to remove oil without any fuss or spillages.

A photograph of a chemist demonstrating the easy stirrer motor lift on the Syrris Orb jacketed reactor

3. Simple stirrer lift

The innovative motor lift allows the stirrer motor to be rotated out of the way to give full access to the lid and ports.  The stirrer motor can then be relocated without the need for further alignment.

A photograph of a chemist demonstrating the easy height adjustment on the Syrris Orb jacketed reactor

4. Unbelievable value

Orb has been introduced to be the workhorse in your laboratory.  With many years developing reactor systems, Syrris developed Orb to be the system to overcome all the issues associated with fixed reactors in the lab.  The system has been designed to be supplied at a very attractive price.  Speak to your Syrris contact and you will be amazed at the price for this extremely robust and impressive system.

5. Tool-free height adjustment

The unique frame allows you to adjust the Orb vessel height without any tools so you can work at a level that is suitable for you.

6. Unmatched thermal performance

Orb vessels offer accurate thermal performance from -40°C to +200°C (or -90°C to +250°C with temperature upgrade kits).

7. Wide accessory range

Condensers, stirrers, probes, baffles, powder or pressure equalizing liquid funnels, port adapters, stoppers, etc. are all available on the Orb platform.

Our passion is to design products to make chemists’ lives easier.  The aim was to create a product with excellent performance at an attractive price….and we believe Orb does this.”

Oliver Sowerby, Head of Product Design
Oliver Sowerby - Headshot - Head of Design at Syrris
A close up photograph of the Syrris logo on the Orb Jacketed Reactor frame
Gold nanoparticles produced using a Syrris Orb jacketed reactor, viewed under a microscope
A photograph of a Syrris glass reactor vessel
A close up photograph of the Syrris Orb label on the Orb's quick clamp
A sketch of the Syrris Orb jacketed reactor

Specifications

Vessel Volume Range

100 mL, 250 mL, 500 mL, 1 L, 2 L, 5 L, and 10 L Torispherical Vessels, 100 mL, 250 mL, 500 mL, 1 L, 2 L, and 5 L Round Bottom Vessels, 100 mL, 250 mL, 500 mL, 1 L, 2 L, and 5 L Vacuum Jacketed Vessels

Vessel Profiles

Jacketed, Vacuum Jacketed

Vessel Shapes

Torispherical, Round Bottom

Accessory range

Condensers, stirrers, probes, baffles, powder or pressure equalizing liquid funnels, port adapters, stoppers, etc. are all available on the Orb platform.

Temperature Range

-90°C to 250°C (with suitable seal kit)

Automation

Automation Upgrades Available

Modes of Operation

Manual Operation, Automation Using Reactor Master

Pressure Range

Vacuum (50 mbara) to 0.25 barg

Reagent Addition and Sampling

Manual Dosing, Automated Dosing (Volumetric)


Applications

This product is suitable for the following applications.


System configurations

Syrris Orb Jacketed Reactor

Orb (100 mL - 2L Reactors)

Designed with simplicity and flexibility in mind, Orb is the jacketed reactor system combining high performance and excellent value. This system is Orb with a DN100 clamp. Suitable for reactors from 100 mL up to 2 L in volume.

Included modules

  • Orb Base Unit

    The Orb Base Unit includes the support frame, adjustable height vessel clamp, motor mounting, drip tray, and hose clamps.

  • Silver Stirrer Motor

    The Orb Silver Stirrer Motor is equipped with a digital speed display, boasts a peak torque of 50Ncm, and can operate from 50 – 1500 RPM making it suitable for the majority of applications.

  • Stirrer

    Wide range of PTFE, glass, stainless steel stirrers in a variety of geometries including anchor, pitch blade turbine and retreat curve impellor.

  • Orb Jacketed Vessels and Lids

    Choose from a range of precision borosilicate glass jacketed reaction vessels and lids. Round Bottomed Jacketed Vessels: 100 mL to 5 L Torispeherical Jacketed Vessels: 100 mL to 10 L Vacuum Jacketed Vessels: 100 mL to 5 L Syrris' Jacketed Vessels have been designed with a number of…

Optional modules

  • Orb DN100 Clamp

    DN100 quick clamp for use with 100 mL to 2 L vessels.

  • Orb Oil Drain and Oil Pipes

    The Orb Oil Drain Unit enables rapid draining of the fluid from the reactor, significantly speeding up reactor changes and helping to avoid unwanted spills. High-performance insulated oil pipes are equipped with M16 x 1.0 connections which maximize efficiency of the system and ensure that…

  • Circulator and Fluid

    Circulator options from industry-leading manufacturer, Huber. A range of circulator accessories and oils for whatever your application are available.

  • Bronze Stirrer Motor

    The Bronze Stirrer Motor is the entry level motor for Orb.  Offering simple manual control of speed from 110 to 2000rpm and peak torque of 18 Ncm, the Bronze Stirrer Motor is an ideal partner for straight forward applications up to 2 L.

  • Gold Stirrer Motor

    The Gold Stirrer Motor for Orb provides a powerful 80 Ncm torque capability, making it ideal for larger and more challenging applications. It also benefits from an RS232 communications port enabling automation from compatible systems such as the Syrris Reactor Master.

Syrris Orb Jacketed Reactor

Orb (1 L to 10 L Reactors)

Designed with simplicity and flexibility in mind, Orb is the jacketed reactor system combining high performance and excellent value. This system is Orb with a DN150 clamp. Suitable for reactors from 1 L up to 10 L in volume.

Included modules

  • Orb Base Unit

    The Orb Base Unit includes the support frame, adjustable height vessel clamp, motor mounting, drip tray, and hose clamps.

  • Silver Stirrer Motor

    The Orb Silver Stirrer Motor is equipped with a digital speed display, boasts a peak torque of 50Ncm, and can operate from 50 – 1500 RPM making it suitable for the majority of applications.

  • Stirrer

    Wide range of PTFE, glass, stainless steel stirrers in a variety of geometries including anchor, pitch blade turbine and retreat curve impellor.

  • Orb Jacketed Vessels and Lids

    Choose from a range of precision borosilicate glass jacketed reaction vessels and lids. Round Bottomed Jacketed Vessels: 100 mL to 5 L Torispeherical Jacketed Vessels: 100 mL to 10 L Vacuum Jacketed Vessels: 100 mL to 5 L Syrris' Jacketed Vessels have been designed with a number of…

Optional modules

  • Orb DN150 Clamp

    DN150 quick clamp for use with vessels from 1 L up to 10 L in volume.

  • Orb Oil Drain and Oil Pipes

    The Orb Oil Drain Unit enables rapid draining of the fluid from the reactor, significantly speeding up reactor changes and helping to avoid unwanted spills. High-performance insulated oil pipes are equipped with M16 x 1.0 connections which maximize efficiency of the system and ensure that…

  • Circulator and Fluid

    Circulator options from industry-leading manufacturer, Huber. A range of circulator accessories and oils for whatever your application are available.

  • Bronze Stirrer Motor

    The Bronze Stirrer Motor is the entry level motor for Orb.  Offering simple manual control of speed from 110 to 2000rpm and peak torque of 18 Ncm, the Bronze Stirrer Motor is an ideal partner for straight forward applications up to 2 L.

  • Gold Stirrer Motor

    The Gold Stirrer Motor for Orb provides a powerful 80 Ncm torque capability, making it ideal for larger and more challenging applications. It also benefits from an RS232 communications port enabling automation from compatible systems such as the Syrris Reactor Master.
