Titan Manufacturing System
The Titan product range is a revolutionary continuous chemical processing system for production scales from kilo lab, through pilot plant to manufacturing. The Titan Manufacturing System is ideal for multi-step chemical processes that have been optimised, and are now candidates for manufacture.
At a glance
The system can be fully automated, producing up to a tonne of product per day, using equipment designed for long-term operation. It can also be quickly and easily reconfigured, to switch from manufacturing one product to another, depending on the needs of your manufacturing facility. The Titan Manufacturing System has been designed for use in walk-in fume cupboards.
The Titan Manufacturing System has similar benefits to the other Titan systems. The same equipment that can be used on a manufacturing scale can be transferred to the lab or pilot scale. Your reactions utilize our high-performance mixing chips and ultra-smooth pumps to ensure that your chemistry occurs in optimum conditions. The specially selected materials of construction ensure high chemical resistance, ensuring that the system remains reliable for extended periods of time.
1. Modular design to meet flexible needs
There is presently a seismic shift in industry to move from batch to continuous processes. The Titan system is a unique, complete kilo scale chemical processing system designed and manufactured by Syrris to meet the evolving needs of the chemicals markets. Scaling up processes cannot be easier with seamless progression from R&D scale using Asia to Titan on kilo lab, pilot plant and production scales.
2. High-performance mixing
Titan has a number of different reactor modules that can be quickly connected together to create single or multi-step and multi-temperature zone reactors. The Fast Mixing Injector reactor (FMI) has been designed for fast reactions requiring extremely high mass transfer and heat transfer. Syrris has utilized the expertise in microfluidics and glass fabrication to enable reactors capable of working with ultra-fast to slow reaction times.
3. Smooth continuous flow

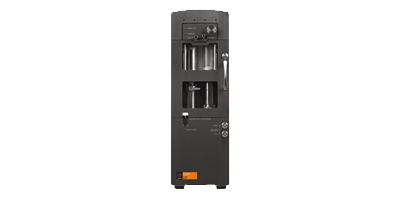

The Titan Syringe Pump has been designed for safe and reliable scale up and offers ultra-smooth fluid flow for lab scale, pilot plant, and production scale applications. Powerful drive motors and innovative valve design have been combined with software control to deliver ultra-smooth flow rates from 1 to 250 mL/min, up to 20 bar, with solutions of viscosities up to 1000 cP.
4. Easy set up
A key component of the Titan system is the Rigid Intermodule Connector (RIC). The RIC allows all reactor modules to be connected together, providing a leak free seal without the requirement of tools. Housed inside a protective housing, the RIC is a glass device which provides functionality appropriate to where it is situated within the system. For example, a fast mixing glass RIC can be situated at the start of the reaction, while a straight through RIC would be situated post reaction.
5. Extremely high chemical resistance
Glass, fluoropolymer, Hastelloy, and Elgiloy wetted parts are available. Reactors have glass, SS316, and Hastelloy options whilst pumps have SS316 or Hastelloy wetted parts. Dead volumes are minimized within the wetted pathways, and non-wetted parts are constructed of durable, high-quality materials with splash resistant coatings.
6. Reliable and robust
Titan has been designed closely with industrial experts for long term use in demanding manufacturing environments.
64 mL and 250 mL reactors can be added in series to cover a wide volume range
Output suitable for laboratory, pilot plant, and manufacturing environments
|System Flow Rates||
1 mL/min to 1 L/min
|Pump Flow Rates||
1 mL/min to 250 mL/min
Up to 20 Bar
-40°C to +250°C
|Types of Processes||
Suited for both fast reactions with high mass transfer and heat transfer requirements, and slow reactions. Designed for use with multiple phases
Glass, fluoropolymers, Hastelloy, and Elgiloy
Control process parameters from the modules, via Titan software, or via pre-existing PLC or plant software
Laminar through to turbulent flow available using the same equipment
Anti-tamper, pressure detection, and auto shut down features
Questions & answers
What warranty do Syrris systems come with and what does it cover?
All Syrris hardware comes with a one year (non-wetted) parts warranty. Please see the Terms and Conditions for further information.
Does Syrris provide an installation service?
Yes, Syrris offer a complete system Installation and Training service. Please talk to your Sales representative for pricing structure.
Does Syrris provide an extended warranty/support package?
Yes, Syrris can provide a bespoke extended warranty and/or support package for your system. Please talk to your Sales representative for pricing structure.
Will I have a dedicated Account Manager I can deal with?
Yes, you’ll have a dedicated Account Manager assigned to you based on your location.
