Titan

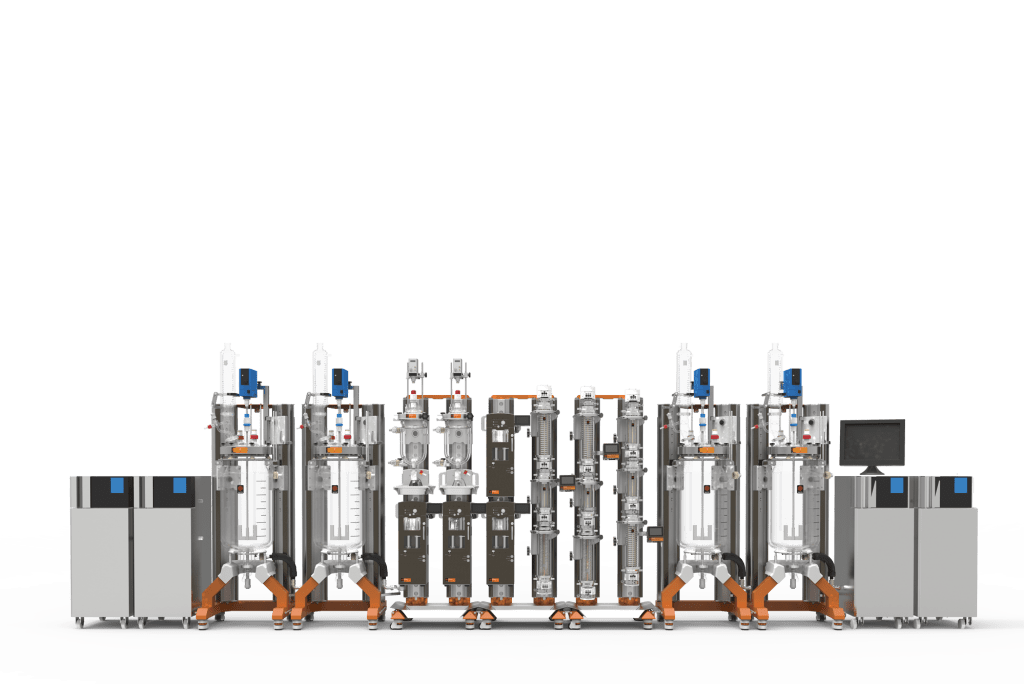

Titan is a revolutionary continuous chemical processing system for production scales from kilo lab, through pilot plant to manufacturing.

At a glance

Titan is a revolutionary continuous chemical processing system for production scales from kilo lab, through pilot plant, to manufacturing.

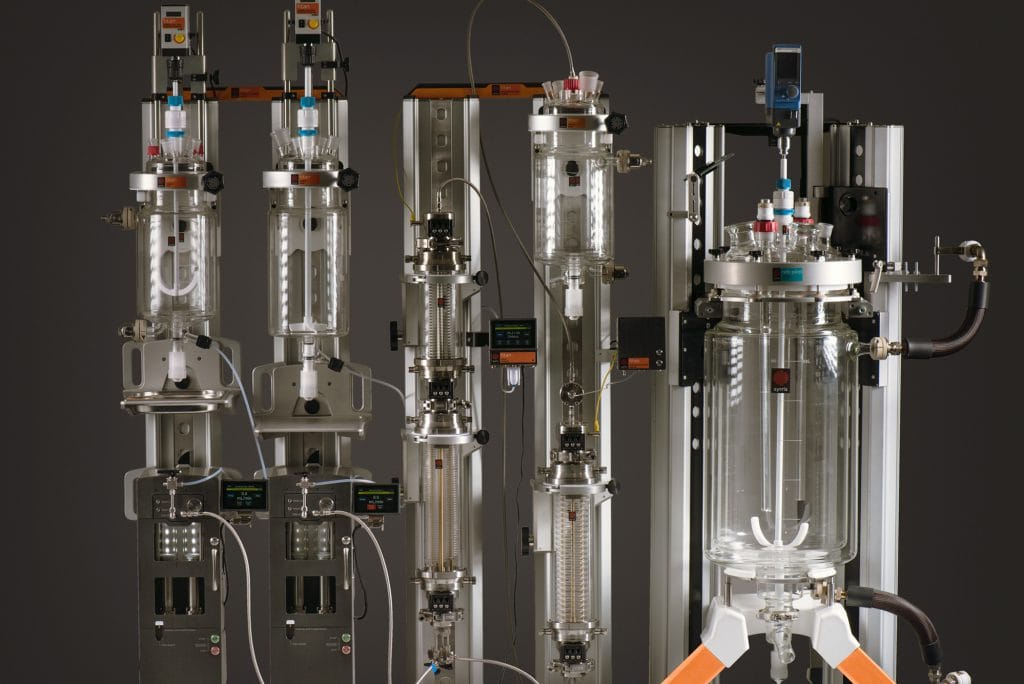

Syrris Titan Key feature - Modularity

1. Modular design to meet flexible needs

There is presently a seismic shift in industry to move from batch to continuous processes. The Titan system is a unique, complete kilo scale chemical processing system designed and manufactured by Syrris to meet the evolving needs of the chemicals markets. Scaling up processes cannot be easier with seamless progression from R&D scale using Asia to Titan on kilo lab, pilot plant and production scales.

Syrris Titan Key feature - RIC Chip Close Up

2. High-performance mixing

Titan has a number of different reactor modules that can be quickly connected together to create single or multi-step and multi-temperature zone reactors.  The Fast Mixing Injector reactor (FMI) has been designed for fast reactions requiring extremely high mass transfer and heat transfer.  Syrris has utilized the expertise in microfluidics and glass fabrication to enable reactors capable of working with ultra-fast to slow reaction times.

Syrris Titan Pump - Close Up Product Shot

3. Smooth continuous flow

The Titan Syringe Pump has been designed for safe and reliable scale up and offers ultra-smooth fluid flow for lab, pilot plant and production scale applications.  Powerful drive motors and innovative valve design have been combined with software control to deliver ultra-smooth flow rates from 1 to 250 mL/min, up to 20 bar, with solutions of viscosities up to 1000 cP.

Syrris Titan - Key feature - Ease of use

4. Easy set up

A key component of the Titan system is the Rigid Intermodule Connector (RIC).  The RIC allows all reactor modules to be connected together, providing a leak free seal without the requirement of tools.  Housed inside a protective housing, the RIC is a glass device which provides functionality appropriate to where it is situated within the system.  SERENDIPITY (what’s this?).  For example, a fast mixing glass RIC can be situated at the start of the reaction, while a straight through RIC would be situated post reaction.

5. Extremely high chemical resistance

Glass, fluoropolymer, Hastelloy, and Elgiloy wetted parts are available.  Reactors have glass, SS316, and Hastelloy options whilst pumps have SS316 or Hastelloy wetted parts.  Dead volumes are minimized within the wetted pathways, and non-wetted parts are constructed of durable, high-quality materials with splash resistant coatings.

6. Reliable and robust

Titan has been designed closely with industrial experts for long term use in demanding manufacturing environments.

Our vision has been to revolutionize flow chemistry and offer complete solutions from lab scale through to manufacture.  The future of continuous flow scale-up is finally here with the release of Titan.”

Dr. Omar Jina, CCO
Omar Jina - Headshot - CCO of Syrris
Syrris Titan - Glass Coil Reactor Close Up During Glass Blowing
Syrris Titan Pump - Close Up of Buttons
Syrris Titan - RIC Chip Close Up
Vortex of a glass vessel stirring
Syrris Titan Sketch

Specifications

Reactor Volumes

64 mL and 250 mL reactors can be added in series to cover a wide volume range

Production Volumes

Output suitable for laboratory, pilot plant, and manufacturing environments

System Flow Rates

1 mL/min to 1 L/min

Pump Flow Rates

1 mL/min to 250 mL/min

Pressure Range

Up to 20 Bar

Temperature Range

-40°C to +250°C

Types of Processes

Suited for both fast reactions with high mass transfer and heat transfer requirements, and slow reactions. Designed for use with multiple phases

Wetted Parts

Glass, fluoropolymers, Hastelloy, and Elgiloy

Automation

Control process parameters from the modules, via Titan software, or via pre-existing PLC or plant software

Mixing

Laminar through to turbulent flow available using the same equipment

Safety

Anti-tamper, pressure detection, and auto shut down features


Applications

This product is suitable for the following applications.


System configurations

Syrris Titan Benchtop System

Lab Scale System

Titan modules can be arranged to form smaller systems, ideal for development of a chemical process at the lab scale.
Our bench-top framework enables a wide range of Titan modules to be assembled on a lab bench or inside a standard fume cupboard.

Included modules

  • Titan Syringe Pump

    Overview The Titan Syringe Pump is a high-performance pump for safe and reliable continuous flow scale-up with maximum chemical compatibility and ultra-smooth flow. The single channel pump is optimized for chemical continuous processing applications and offers flow rates from 1 to 250 mL/min and pressures…

  • Titan Reactors

    Titan features various reactor modules which can be quickly connected together to create single- or multi-step, and multi-temperature zone reactors. Our patent pending technology makes it easy to move from lab scale to pilot scale chemistry. Pre-Reaction Heat Exchanger - for heating or cooling the…

  • Titan Bench Framework

    The Titan Bench Framework allows single reactors to be held in position.  The framework allows seamless connection and simple height adjustment. The framework enables pumps, reactors, feed vessels, and other modules to be easily clipped on and off. The frame is modular, and several frames…

  • Rigid Intermodule Connector

    The Rigid Intermodule Connector joins and seals the system across a temperature range of -40°C to 250°C and allows the integration of thermocouples and other monitoring devices.

  • Automation

    Control process parameters across the modules, using Titan software.

Optional modules

  • Circulator and Fluid

    Circulator options from industry-leading manufacturer, Huber. A range of circulator accessories and oils for whatever your application are available.

  • Circulator Hoses

    Orb Pilot Circulator Hoses provides a high degree of insulation, helping to maximize the performance of your circulator and reactor. Safety is also improved with secure couplings and reduced risk of contact burns. These 3.0 M hoses are equipped with M30 x 1.5 thread couplings.

Syrris Titan Pilot Plant Product Shot

Pilot Plant

Titan modules can be assembled into numerous system configurations for quick and easy evaluation of process parameters needed to carry out chemical processes.
Our floor-standing framework allows you to carry out your pilot studies on the plant floor or in walk-in fume cupboards.

Included modules

  • Titan Small Store

    The Titan Small Store is a temperature-controlled reagent store and product collector and features a powerful stirrer for agitation of reagents/products. Optional full automation and pressurization is available. Fits bench-top or floor-standing Titan frame and includes vessel sizes of 1 L, 5 L, or 10…

  • Titan Reactors

    Titan features various reactor modules which can be quickly connected together to create single- or multi-step, and multi-temperature zone reactors. Our patent pending technology makes it easy to move from lab scale to pilot scale chemistry. Pre-Reaction Heat Exchanger - for heating or cooling the…

  • Titan Large Store

    The Titan Large Store is a large temperature-controlled reagent store and product collector and features a powerful stirrer for agitation of reagents/products. Optional full automation and pressurization is available. Includes floor-standing Titan frame and vessel sizes of 20 L, 30 L, or 50 L. Vessel…

  • Titan Framework

    Titan framework is designed to be robust and easily reconfigurable. The framework enables pumps, reactors, feed vessels, and other modules to be easily clipped on and off. The frame is modular, and several frames can be quickly clipped together. The frame comes with wheels, drip…

  • Titan Syringe Pump

    Overview The Titan Syringe Pump is a high-performance pump for safe and reliable continuous flow scale-up with maximum chemical compatibility and ultra-smooth flow. The single channel pump is optimized for chemical continuous processing applications and offers flow rates from 1 to 250 mL/min and pressures…

  • Rigid Intermodule Connector

    The Rigid Intermodule Connector joins and seals the system across a temperature range of -40°C to 250°C and allows the integration of thermocouples and other monitoring devices.

  • Titan Back Pressure Regulator

    Material: Stainless Steel, Hastelloy Pressure: 20 bar Temp range – 40°-250°C

  • Automation

    Control process parameters across the modules, using Titan software.

Optional modules

  • Circulator and Fluid

    Circulator options from industry-leading manufacturer, Huber. A range of circulator accessories and oils for whatever your application are available.

  • Circulator Hoses

    Orb Pilot Circulator Hoses provides a high degree of insulation, helping to maximize the performance of your circulator and reactor. Safety is also improved with secure couplings and reduced risk of contact burns. These 3.0 M hoses are equipped with M30 x 1.5 thread couplings.

Syrris Titan Product Shot - Manufacturing System

Manufacturing System

Using the same continuous processing modules available at lab and pilot scale, you can move straight into manufacturing scale with minimal fuss.
Titan systems can produce up to a tonne (process dependent) of product per day. Titan systems are designed for long term operation with built-in safety features.

Included modules

  • Titan Syringe Pump

    Overview The Titan Syringe Pump is a high-performance pump for safe and reliable continuous flow scale-up with maximum chemical compatibility and ultra-smooth flow. The single channel pump is optimized for chemical continuous processing applications and offers flow rates from 1 to 250 mL/min and pressures…

  • Titan Small Store

    The Titan Small Store is a temperature-controlled reagent store and product collector and features a powerful stirrer for agitation of reagents/products. Optional full automation and pressurization is available. Fits bench-top or floor-standing Titan frame and includes vessel sizes of 1 L, 5 L, or 10…

  • Titan Reactors

    Titan features various reactor modules which can be quickly connected together to create single- or multi-step, and multi-temperature zone reactors. Our patent pending technology makes it easy to move from lab scale to pilot scale chemistry. Pre-Reaction Heat Exchanger - for heating or cooling the…

  • Titan Large Store

    The Titan Large Store is a large temperature-controlled reagent store and product collector and features a powerful stirrer for agitation of reagents/products. Optional full automation and pressurization is available. Includes floor-standing Titan frame and vessel sizes of 20 L, 30 L, or 50 L. Vessel…

  • Titan Framework

    Titan framework is designed to be robust and easily reconfigurable. The framework enables pumps, reactors, feed vessels, and other modules to be easily clipped on and off. The frame is modular, and several frames can be quickly clipped together. The frame comes with wheels, drip…

  • Titan Back Pressure Regulator

    Material: Stainless Steel, Hastelloy Pressure: 20 bar Temp range – 40°-250°C

  • Rigid Intermodule Connector

    The Rigid Intermodule Connector joins and seals the system across a temperature range of -40°C to 250°C and allows the integration of thermocouples and other monitoring devices.

  • Automation

    Control process parameters across the modules, using Titan software.

Optional modules

  • Circulator and Fluid

    Circulator options from industry-leading manufacturer, Huber. A range of circulator accessories and oils for whatever your application are available.

  • Circulator Hoses

    Orb Pilot Circulator Hoses provides a high degree of insulation, helping to maximize the performance of your circulator and reactor. Safety is also improved with secure couplings and reduced risk of contact burns. These 3.0 M hoses are equipped with M30 x 1.5 thread couplings.
